Employment/Purpose

A window is, like HTML DIV tag, used to group components. Unlike other components, a window has the following characteristics.

Common Use Cases

  • Modal dialogs — prompt users for confirmation or required input without allowing them to interact with the rest of the page (use mode="modal").
  • Overlapped utility windows — display supplementary information (logs, help, detail panels) alongside the main content without navigating away; users can drag and reposition them.
  • Resizable/maximizable panels — combine sizable="true" with maximizable="true" and minimizable="true" to give users full control over a floating workspace panel.
  • Popup context windows — anchor a transient window near a triggering element (mode="popup" + position="parent") so it dismisses automatically when the user clicks elsewhere.
  • Inline content grouping — use the default embedded mode as a styled container (with border="normal" and a title) to visually group related form fields or content blocks.

Example


    <window title="Embedded Style" border="normal" width="200px">Hello,
        Embedded!
    </window>
    <window title="Overlapped Style" mode="overlapped" border="normal"
            width="200px">Hello, Overlapped!
    </window>

Window Modes

A window could be in one of five different modes:

  • embedded (default)
  • overlapped
  • popup
  • modal
  • highlighted and

You could change the mode by the use of org.zkoss.zul.Window#setMode(java.lang.String).

<window title="Hi, I'm Overlapped" border="normal" mode="overlapped">
...
</window>

Alternatively, you could invoke one of org.zkoss.zul.Window#doOverlapped(), org.zkoss.zul.Window#doPopup(), org.zkoss.zul.Window#doModal(), org.zkoss.zul.Window#doHighlighted(), and org.zkoss.zul.Window#doEmbedded(), as shown below.

<zk>
    <window id="win" title="Hi!" border="normal" width="200px">
        <caption>
            <toolbarbutton label="Help"/>
        </caption>
        <checkbox label="Hello, Wolrd!"/>
    </window>

    <button label="Overlap" onClick="win.doOverlapped();"/>
    <button label="Popup" onClick="win.doPopup();"/>
    <button label="Modal" onClick="win.doModal();"/>
    <button label="Embed" onClick="win.doEmbedded();"/>
    <button label="Highlighted" onClick="win.doHighlighted();"/>
</zk>

Embedded

An embedded window is placed inline with other components. In this mode, you cannot change its position, since the position is decided by the browser. It is the default mode since it is the most common appearance.

Overlapped

An overlapped window is overlapped with other components, such that users could drag it around and developer could set its position by org.zkoss.zul.Window#setLeft(java.lang.String) and org.zkoss.zul.Window#setTop(java.lang.String) based on the entire scrollable area.

<window title="My Overlapped" width="300px" mode="overlapped">
</window>

An overlapped window is typically used to display the information that should co-exist with the current operation and should appear for a long time. You might have multiple overlapped windows and each for different set of information. If you want to show the information that will appear only temporarily (dismissed as soon as a user clicks somewhere else), you could use the popup mode as described in the next section, or the Popup component.

A popup window is similar to overlapped windows, except it is automatically closed when user clicks on any component other than the popup window itself or any of its descendants. Of course, you could dismiss it manually by making it invisible or detaching it.

As its name suggested, it is designed to implement the popup windows. A typical application is to display information that won’t obscure the current operation and are easy to close. A popup window is usually position around the focal point (such as a button). It can be done by use of org.zkoss.zul.Window#setPosition(java.lang.String) with parent.

For example, we could display a popup window right after a button as depicted below.

<zk>
    <toolbarbutton label="More info" onClick="info.doPopup()"/><span>
    <window id="info" visible="false" width="120px" border="normal" position="parent">
    Here is more information
    </window>
    </span>
</zk>

where we specify position="parent", and make it as a child of a span component. The span component acts as an anchor point and the window is posited based on it.

In additions to popup windows, you could use Popup for displaying a popup. The popup component has more control how to position it (by the use of org.zkoss.zul.Popup#open(org.zkoss.zk.ui.Component, java.lang.String)).

By default, a modal window is the same as a highlighted window. You should consider them exactly the same.

Blocking Background Content

A modal window provides the so-called modal effect that limits a user from accessing components other than the modal window. Users cannot access anything outside of the modal window, including clicking or tabbing.

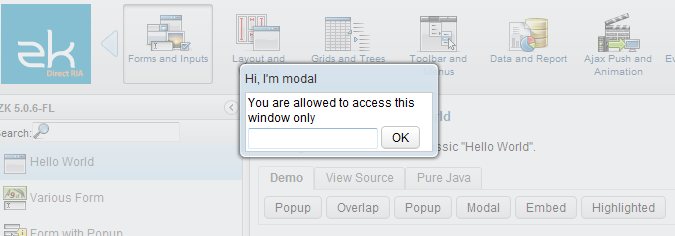

For instance, you could access only the textbox and button in the following example:


You can have multiple modal windows at the same time, and a user can only access the last modal window. Once the last modal is dismissed (invisible or detached), the previous modal window will become the active modal window until it is dismissed.

Dismiss

To dismiss a modal window, you can make it invisible (org.zkoss.zul.Window#setVisible(boolean)), or detach it from a page.

Position

By default, a modal window is positioned at the center of the viewport. You can change the position by org.zkoss.zul.Window#setPosition(java.lang.String) or org.zkoss.zul.Window#setLeft(java.lang.String) and org.zkoss.zul.Window#setTop(java.lang.String) based on the current viewport.

Enforce Gaining the Focus

When a modal (or highlighted) window is displayed, ZK enforces focus on its first focusable child component if a user clicks anywhere on the page. This behavior ensures that users remain within the context of the modal interaction, which is a common design pattern for modal dialogs. The enforced focus prevents users from interacting with the background content, maintaining the modal window’s purpose as a self-contained prompt requiring user attention.

Notice: Event processing thread is disabled by default since 5.0. For the older version, it is enabled by default

By default, events are processed in the same thread that serves the HTTP request (so-called Servlet thread). However, you could configure ZK to process events in an individual thread, such that the event listener could suspend the execution at any time, and resume later. For how to enable the event processing thread, please refer to The_disable-event-thread_Element

Notice that, for better integration with other frameworks, such as Spring, it is suggested to disable the event processing thread (default). For more information, please refer to the Event Threads.

Once the event thread is enabled, a modal window will behave differently from other modes: org.zkoss.zul.Window#doModal() will suspend the execution until dismissed (invisible, detached or mode changed). It is convenient to implement something that has to wait for user’s further input.

As depicted in the following example, f1() is called only after win1 is dismissed, while g1() is called immediately right after win2 becomes highlighted:

win1.doModal(); //the execution is suspended until win1 is closed
f1();
win2.doHighlighted(); //the execution won't be suspended
g1()

Common Dialogs

The XUL component set supports the following common dialogs to simplify some common tasks.

Properties

Border

The border property (org.zkoss.zul.Window#setBorder(java.lang.String)) specifies whether to display a border for window. The default style sheets support only normal and none. The default value is none, i.e., no border.

Closable

By setting the closable property (org.zkoss.zul.Window#setClosable(boolean)) to true, a close button is shown for the window, which enables a to close the window by clicking the button. Once the user clicks on the close button, an onClose event is sent to the window which is processed by the onClose method of the Window component. Then, onClose, by default, detaches the window itself.

The onClose Event

You can override it to do whatever you want. Or, you can register your own listener to change the default behavior. For example, you might choose to hide the window rather than close it.


<window closable="true" title="Detach on Close" border="normal" width="200px"
 onClose="self.visible = false; event.stopPropagation();">
     In this example, this window hides itself when the close button is clicked.
</window>

Notice that event.stopPropagation() (org.zkoss.zk.ui.event.Event#stopPropagation()) must be called to prevent the default onClose handler (org.zkoss.zul.Window#onClose()) being called.

Tip: If the window is a popup, the onOpen event will be sent to the window with open=false, when the popup is closed due to the user clicking outside of the window, or pressing ESC.

The onClose is sent to ask the server to detach or to hide the window. By default, the window is detached. Of course, the application can override this behavior and do whatever it wants as described above.

On the other hand, onOpen is a notification. It is sent to notify the application that the client has hidden the window. The application cannot prevent it from hiding or changing the behavior to be detached.

ContentStyle and ContentSclass

You can customize the look and feel of window’s content block by specifying the contentStyle property (org.zkoss.zul.Window#setContentStyle(java.lang.String)).


<zk>
    <window title="My Window" border="normal" width="200px" contentStyle="background:yellow">
        Hello, World!
    </window>
</zk>

Scrollable Window

A typical use of the contentStyle attribute is to make a window scrollable as follows.


<window id="win" title="Hi" width="150px" height="100px" contentStyle="overflow:auto" border="normal">
     This is a long line wrapped over several lines, and more content to display.
     Finally, the scrollbar becomes visible.
     This is another line.
</window>

Note: For IE 7’s overflow bug, also use position:relative with overflow:auto

Position

By default, its value is null. That is, an overlapped/popup window is positioned by the left and top attributes based on the entire scrollable area, while a highlighted/modal window is positioned at the center of the viewport.

If you specify a value in this attribute, it takes higher priority than left and top attributes. Hence, a window is rendered upon this position and ignore left and top.

For example, the following code snippet positions the window to the right-bottom corner.

<window width="300px" mode="overlapped" position="right,bottom">
 ...

The position’s value can be a combination of the following constants by separating them with commas (,).

Constant Description
center Position the window at the center. If left or right is also specified, it means the vertical center. If top or bottom is also specified, it means the horizontal center. If none of left, right, top and bottom is specified, it means the center in both directions.

Both the left and top properties are ignored.
left Position the window at the left edge.

The left property is ignored.
right Position the window at the right edge.

The left property is ignored.
top Position the window at the top.

The top property is ignored.
bottom Position the window at the bottom.

The top property is ignored.

Based on Viewport

ZK calculates the position based on the current viewport, not the whole scrollable area’s boundary. So if you scroll down a page for 1000px, the top means the top of the viewport instead of the top of the page.

Based on the Parent

Constant Description
parent Position the window relative to the top-left corner of the parent component. See specific details in the popup section. If left or top is also specified, the position will be offset from the top-left corner of the parent component by the same amount.

This position cannot be combined with other positions mentioned in the previous table.

Sizable

If you allow users to resize the window, you can set the sizable attribute to true as follows.

<window id="win" title="Sizable Window" border="normal" width="200px" sizable="true">
    This is a sizable window.
    <button label="Change Sizable" onClick="win.sizable = !win.sizable"/>
</window>

Once allowed, users can resize the window by dragging the borders.

The onSize Event

Once a user resizes the window, the onSize event is sent with an instance of the org.zkoss.zul.event.SizeEvent. Notice that the window is resized before theonSize event is sent. In other words, the event serves as a notification that you generally ignore. Of course, you can do whatever you want in the event listener.

Note: If the user drags the upper or left border, the onMove event is also sent since the position has changed, too.

Title and Caption

A window might have a title, a caption and a border. The title is specified by the title attribute. The caption is specified by declaring a child component called caption. All children of the caption component will appear on right hand side of the title.


<zk>
    <window title="Demo" border="normal" width="350px">
        <caption>
            <toolbarbutton label="More" />
            <toolbarbutton label="Help" />
        </caption>
        <toolbar>
            <toolbarbutton label="Save" />
            <toolbarbutton label="Cancel" />
        </toolbar>
        What is your favorite framework?
        <radiogroup>
            <radio label="ZK" />
            <radio label="JSF" />
        </radiogroup>
    </window>
</zk>

You are also able to specify a label and an image within a caption, and then the appearance is as follows.


<zk>
    <window id="win" title="Main" border="normal" width="200px">
        <caption image="/images/ZK-Logo.PNG" label="Hi there!"/>
        <checkbox label="Hello, World!"/>
    </window>
</zk>

Maximizable

Default Value: false

since 3.5.0

Sets whether to display a maximize button on the title bar and allow the user to maximize the window. When the window is maximized, the button automatically changes to a restore button that returns the window to its original size.

Note: the maximize button is not displayed if the window has neither a title attribute nor a child <caption> component.

<window title="My Window" border="normal" width="400px" maximizable="true">
    This window can be maximized.
</window>

Maximized

Default Value: false

since 3.5.0

Sets whether the window is currently maximized. When set to true, the window expands to fill its offset parent (for overlapped windows) or its parent container (for embedded windows). Setting it back to false restores the window to its previous size.

Requires maximizable="true"; throws an UiException if maximizable is false. Setting maximized="true" also clears any minimized state.

<window title="My Window" border="normal" width="400px"
        maximizable="true" maximized="true">
    This window starts maximized.
</window>

Minimizable

Default Value: false

since 3.5.0

Sets whether to display a minimize button on the title bar. Because the ZK default minimize behavior simply hides the window, you normally listen to the onMinimize event and implement a custom minimize behavior (for example, collapsing the window to a taskbar entry).

Note: the minimize button is not displayed if the window has neither a title attribute nor a child <caption> component.

<window title="My Window" border="normal" width="400px"
        minimizable="true" onMinimize="doCustomMinimize(self)">
    This window can be minimized.
</window>

Minimized

Default Value: false

since 3.5.0

Sets whether the window is currently minimized. When set to true, the window becomes invisible (hidden). Setting it back to false makes it visible again.

Requires minimizable="true"; throws an UiException if minimizable is false. Setting minimized="true" also clears any maximized state.

<window title="My Window" border="normal" width="400px"
        minimizable="true" minimized="true">
    This window starts minimized (hidden).
</window>

Minheight

Default Value: 100 (pixels)

since 3.5.0

Sets the minimum height in pixels that the window can be resized to. Negative values are treated as 100. This property only takes effect when sizable="true".

<window title="Sizable Window" border="normal" width="400px" height="300px"
        sizable="true" minheight="150">
    This window cannot be resized below 150px in height.
</window>

Minwidth

Default Value: 200 (pixels)

since 3.5.0

Sets the minimum width in pixels that the window can be resized to. Negative values are treated as 200. This property only takes effect when sizable="true".

<window title="Sizable Window" border="normal" width="400px" height="300px"
        sizable="true" minwidth="250">
    This window cannot be resized below 250px in width.
</window>

Shadow

Default Value: true

since 3.6.0

Sets whether to render a drop-shadow beneath an overlapped, popup, or modal window. This property has no visible effect for embedded windows.

<window title="No Shadow" mode="overlapped" border="normal"
        width="300px" shadow="false">
    This overlapped window has no shadow.
</window>

Supported Events

Name Event Type Description
onMove org.zkoss.zk.ui.event.Event Denotes the position of the window is moved by a user.
onOpen org.zkoss.zk.ui.event.OpenEvent Denotes user has opened or closed a component. Unlike onClose, this event is only a notification. The client sends this event after opening or closing the component. It is useful to implement load-on-demand by listening to the onOpen event, and creating components when the first time the component is opened.
onClose org.zkoss.zk.ui.event.Event Denotes the close button is pressed by a user, and the component shall detach itself.
onMaximize org.zkoss.zk.ui.event.MaximizeEvent Denotes user has maximize a component.
onMinimize org.zkoss.zk.ui.event.MinimizeEvent Denotes user has minimize a component.
onSize org.zkoss.zk.ui.event.SizeEvent Denotes the panel’s size is updated by a user.
onZIndex org.zkoss.zk.ui.event.ZIndexEvent Denotes the panel’s zindex is updated by a user.

Supported Children

ALL
