Employment/Purpose

A tabpanel serves as the content container for a single tab within a tabbox. It is used to organize and display a group of components under a specific tab. Each tabpanel is associated with a specific tab within the tabbox, with the first tabpanel corresponding to the first tab, the second tabpanel corresponding to the second tab, and so on.

Common Use Cases

Placing a Full Layout Inside a Tab

Because tabpanel accepts any child component, you can nest a complete layout (such as borderlayout or vlayout) inside a single tab to build complex, multi-zone UIs.

<tabbox vflex="1" hflex="1">
    <tabs>
        <tab label="Dashboard" />
    </tabs>
    <tabpanels>
        <tabpanel>
            <borderlayout>
                <north size="80px"><label value="Header" /></north>
                <center><grid hflex="1" vflex="1" /></center>
            </borderlayout>
        </tabpanel>
    </tabpanels>
</tabbox>

Scrollable Panel Content

Set a fixed height (via style) on tabpanel and let content overflow with overflow: auto to create a scrollable region within the tab, keeping the tab bar always visible.

<tabbox width="400px">
    <tabs>
        <tab label="Long List" />
    </tabs>
    <tabpanels>
        <tabpanel style="overflow:auto;height:200px;">
            <listbox>
                <listitem label="Item 1" />
                <listitem label="Item 2" />
                <!-- more items ... -->
            </listbox>
        </tabpanel>
    </tabpanels>
</tabbox>

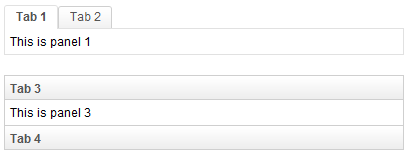

Example

The example demonstrates the usage of tabpanel within a tabbox and tabpanels in ZK:

  • Two tabboxes with tabs labeled ‘Tab 1’ and ‘Tab 2’.
  • Corresponding tabpanels displaying ‘This is panel 1’ and ‘This is panel 2’.
  • Another tabbox with accordion mold and tabs labeled ‘Tab 3’ and ‘Tab 4’.
  • Tabpanels within the accordion tabbox showcasing ‘This is panel 3’ and ‘This is panel 4’.

Tabs

<zk>
	<tabbox width="400px">
		<tabs>
			<tab label="Tab 1" />
			<tab label="Tab 2" />
		</tabs>
		<tabpanels>
			<tabpanel>This is panel 1</tabpanel>
			<tabpanel>This is panel 2</tabpanel>
		</tabpanels>
	</tabbox>
	<space />
	<tabbox width="400px" mold="accordion">
		<tabs>
			<tab label="Tab 3" />
			<tab label="Tab 4" />
		</tabs>
		<tabpanels>
			<tabpanel>This is panel 3</tabpanel>
			<tabpanel>This is panel 4</tabpanel>
		</tabpanels>
	</tabbox>
</zk>

Try it

Supported Children

*ALL: The Tabpanel component is a container component that can hold various kinds of components. It allows you to add any kind of component as its child.
