Employment/Purpose

The auxiliary headers support the colspan and rowspan properties which allows itself to be spanned across several columns/rows. Auxiliary headers should be accompanied with columns/listhead/treecols when used with grid/listbox/tree. since 8.0.0 Noted that it is forbidden to set width/height/hflex/vflex in Auxheader.

Common Use Cases

  • Multi-level column grouping: Use multiple <auxhead> rows with colspan to group related columns under a shared label — for example, grouping monthly columns under quarterly headers, and quarterly under half-year headers.
  • Row-spanning labels: Use rowspan to pin a header label across multiple <auxhead> rows when one logical grouping spans both header rows (e.g. a fixed identifier column that spans all header levels).
  • Works with Grid, Listbox, and Tree: <auxhead>/<auxheader> can be placed inside any of these components to add a descriptive header band above the primary column headers.

Example

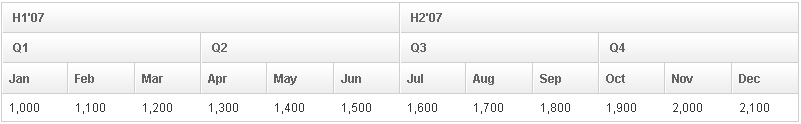

An auxiliary header.

Auxheader


<grid>
    <auxhead>
        <auxheader label="H1'07" colspan="6" />
        <auxheader label="H2'07" colspan="6" />
    </auxhead>
    <auxhead>
        <auxheader label="Q1" colspan="3" />
        <auxheader label="Q2" colspan="3" />
        <auxheader label="Q3" colspan="3" />
        <auxheader label="Q4" colspan="3" />
    </auxhead>
    <columns>
        <column label="Jan" />
        <column label="Feb" />
        <column label="Mar" />
        <column label="Apr" />
        <column label="May" />
        <column label="Jun" />
        <column label="Jul" />
        <column label="Aug" />
        <column label="Sep" />
        <column label="Oct" />
        <column label="Nov" />
        <column label="Dec" />
    </columns>
    <rows>
        <row>
            <label value="1,000" />
            <label value="1,100" />
            <label value="1,200" />
            <label value="1,300" />
            <label value="1,400" />
            <label value="1,500" />
            <label value="1,600" />
            <label value="1,700" />
            <label value="1,800" />
            <label value="1,900" />
            <label value="2,000" />
            <label value="2,100" />
        </row>
    </rows>
</grid>

Properties

Colspan

Default Value: 1

Sets the number of columns this header spans — equivalent to the colspan attribute of an HTML <td> element. The value must be a positive integer (1 or greater); a value of zero or less throws a WrongValueException.

<grid>
    <auxhead>
        <auxheader label="H1'07" colspan="6" />
        <auxheader label="H2'07" colspan="6" />
    </auxhead>
    <columns>
        <column label="Jan" /><column label="Feb" /><column label="Mar" />
        <column label="Apr" /><column label="May" /><column label="Jun" />
        <column label="Jul" /><column label="Aug" /><column label="Sep" />
        <column label="Oct" /><column label="Nov" /><column label="Dec" />
    </columns>
</grid>

Rowspan

Default Value: 1

Sets the number of rows this header spans — equivalent to the rowspan attribute of an HTML <td> element. The value must be a positive integer (1 or greater); a value of zero or less throws a WrongValueException. See The Limitation of rowspan for known layout constraints when combining rowspan and colspan.

<grid>
    <auxhead>
        <auxheader label="A" rowspan="2" />
        <auxheader label="BC" colspan="2" />
        <auxheader label="D" rowspan="2" />
    </auxhead>
    <auxhead>
        <auxheader label="B" />
        <auxheader label="C" />
    </auxhead>
    <columns/>
</grid>

The Limitation of rowspan

For better performance, every instance of Column will create an invisible HTML TH element called faker. However, with some complex combination of rowspan and colspan, Grid might not be able to generate the correct number of faker to represent each column.

For example, it is wrong if the number of the column components are not the same as the number of columns in each row as shown below:

<grid width="200px">
    <auxhead>
        <auxheader label="A" rowspan="2" />
        <auxheader label="BC" colspan="2" />
        <auxheader label="D" rowspan="2" />
    </auxhead>
    <columns><!-- this is wrong since the number of column components is smaller -->
        <column label="B"/>
        <column label="C"/>
    </columns>
    <rows>
        <row>
            <label forEach="E,F,G,H" value="${each}"/><!-- four columns -->
        </row>
    </rows>
</grid>

Auxheader rowspan limitation

As shown above, the column with label C will be invisible, because the fakers are not created correctly. Here is the result but wrong DOM structure:

Auxheader rowspan limitation01

There is a simple workaround: specify all columns. If you don’t want to show all columns, you could use Auxheader instead of Column, and then add an empty Columns. For example, the code in the previous example can be fixed as follows:

<grid width="200px">
    <auxhead>
        <auxheader label="A" rowspan="2" />
        <auxheader label="BC" colspan="2" />
        <auxheader label="D" rowspan="2" />
    </auxhead>
    <auxhead>
        <auxheader label="B"/>
        <auxheader label="C"/>
    </auxhead>
    <columns/> <!-- use an empty columns to make fakers created correctly -->
    <rows>
        <row>
            <label forEach="E,F,G,H" value="${each}"/>
        </row>
    </rows>
</grid>

Auxheader rowspan limitation02

The other limitation is that the width of the Auxheader component depend on the Column component. Thus, if you’d like to specify the width in the Column component, it means it will take some space even when there are no label in all Column components. The workaround is simple: make the empty Columns component invisible. For example,

<grid width="350px">
    <auxhead>
        <auxheader label="A" rowspan="2" />
        <auxheader label="BC" colspan="2" />
        <auxheader label="D" rowspan="2" />
    </auxhead>
    <auxhead>
        <auxheader label="B"/>
        <auxheader label="C"/>
    </auxhead>
    <columns visible="false"><!-- make it invisible -->
        <column width="100px"/><!-- specify width here -->
        <column width="150px"/>
        <column width="50px"/>
        <column width="50px"/>
    </columns>
    <rows>
        <row>
            <label forEach="E,F,G,H" value="${each}"/>
        </row>
    </rows>
</grid>

Auxheader rowspan limitation03
