Fragment

Java API: org.zkoss.zkmax.zul.Fragment
JavaScript API: zkmax.wgt.Fragment

Available for ZK: Enterprise Edition

Employment/Purpose

The Fragment component in ZK allows developers to combine native HTML elements with ZK data binding syntax, enabling them to make static pages dynamic. By utilizing annotations such as @save, @load, @bind, @command, and @global-command, developers can create interactive and data-driven web applications.

Example

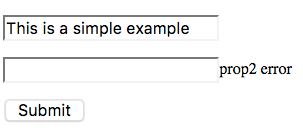

The following example demonstrates how to use the Fragment component with MVVM data binding:

ZKComRef_Fragment_Example

<zk>
    <fragment viewModel="@id('vm') @init('org.zkoss.fragment.demo.VM2')" validationMessages="@id('vmsgs')"
              form="@id('fx') @load(vm) @save(vm, before='submit') @validator(vm.formValidator)"
              prop1="@bind(fx.prop1)" prop1err="@bind(vmsgs['fkey1'])"
              prop2="@bind(fx.prop2)" prop2err="@bind(vmsgs['fkey2'])"><![CDATA[
        <p><input type="text" value="@bind(prop1)"/><span textContent="@load(prop1err)"/></p>
        <p><input type="text" value="@bind(prop2)"/><span textContent="@load(prop2err)"/></p>
        <button onclick="@command('submit')">Submit</button>
    ]]></fragment>
</zk>

In this example:

viewModel defines the ViewModel class and initializes it.
validationMessages holds validation messages for properties.
prop1 is bound to the ViewModel property prop1.
prop1err is bound to the validation message for prop1.

Data Binding

The Fragment component supports various annotations for data binding, such as @save, @load, @bind, @command, and @global-command. Developers can bind properties of the ViewModel to native HTML elements for dynamic interaction.

Enclose with CDATA

Remember to mark the fragment content with the CDATA section to avoid being parsed by server-side binder and causing problems:

<fragment><![CDATA[
    ...
]]></fragment>

Supported Bindings

The supported annotations for binding within a Fragment include:

@save

syntax: @save([limited EL-expression])
@load

syntax: @load(limited EL-expression)
@bind

syntax: @bind(limited EL-expression)
@command

syntax: @command(mybean.myproperty, [arbitraryKey]=[limited EL-expression])
@global-command

syntax: @global-command(mybean.myproperty, [arbitraryKey]=[limited EL-expression])

Limited EL-expression

Inside a fragment, it only supports partially, limited data binding expressions including bean dot notation, arithmetic operator, !, and ==

Put HTML as Text Content

Developers can use the textContent attribute to insert data into HTML elements within the Fragment component, facilitating dynamic content manipulation.

<zk>
    <fragment viewModel="@id('vm') @init('org.zkoss.zktest.test2.F85_ZK_3681_Command_VM')"
              status="@bind(vm.status)"><![CDATA[
        <div>
            <input type="checkbox" onchange="@command('onCheck', checked=event.checked)" />
            Check this checkbox: <span textContent="@load(status)"/>
        </div>

        <div>
            <button onclick="@global-command('callGlobal', text='Hello', num=1)">Call global (1)</button>
            <button onclick="@global-command('callGlobal', text='World', num=2)">Call global (2)</button>
        </div>
    ]]></fragment>
</zk>

Shadow Elements

Fragment component supports conditional and collection rendering through shadow elements like if and forEach tags. These elements provide additional flexibility in defining the display logic within the component.

<zk>
    <fragment viewModel="@id('vm') @init('org.zkoss.zktest.test2.F85_ZK_3681_Shadow_VM')"
        issues="@bind(vm.issues)"><![CDATA[
        <section>
            <h1>My Issue List</h1>
            <ul>
                <forEach items="@load(issues)">
                    <!-- There's a pre-defined variable "each" for convenience. -->
                    <li>
                        <!-- @bind(each) is wrong because each is just a temp variable in loops. -->
                        <input type="checkbox" checked="@load(each.isDone)" />
                        <if test="@load(each.isDone)">
                            <strike>[<span textContent="@load(each.id)"/>]
                            <span textContent="@load(each.description)"/></strike>
                        </if>
                        <!-- No else for now. -->
                        <if test="@load(!each.isDone)">
                            [<span textContent="@load(each.id)"/>]
                            <span textContent="@load(each.description)"/>
                        </if>
                    </li>
                </forEach>
            </ul>
        <section>
    ]]></fragment>
</zk>

Data Validation

Server-side Property/Form Validation

To validate data on the server-side using ZK’s validators, you can utilize the following syntax:

<zk>
    <fragment viewModel="@id('vm') @init('org.zkoss.fragment.demo.VM1')" validationMessages="@id('vmsgs')"
              prop1="@bind(vm.prop1) @validator(vm.validator1)"
              prop1err="@bind(vmsgs['prop1'])"><![CDATA[
        <input type="text" value="@bind(prop1)"/>
        <span textContent="@load(prop1err)"/>
    ]]></fragment>
</zk>

In this code snippet, you can see how to bind properties and validators to validate form fields. By assigning a custom key as an alias, you can access invalid messages easily.

To validate multiple fields using form binding and form validators, you can use the following approach:

<zk>
    <fragment viewModel="@id('vm') @init('foo.BarVM')" validationMessages="@id('vmsgs')"
     form="@id('fx') @load(vm.currentUser) @save(vm.currentUser, before='submit') @validator('formBeanValidator', prefix='p_')"
     name="@bind(fx.name)" nameerror="@bind(vmsgs['p_name'])"><![CDATA[
     <input type="text" value="@bind(name)"/><span textContent="@load(nameerror)"/>
     <button onclick="@command('submit')">Submit</button>
    ]]></fragment>
</zk>

This code snippet demonstrates how to validate form elements and display error messages for each field.

Client-side Property Validation

ZK also provides client-side validation using the @jsvalidator attribute, allowing you to run custom JavaScript functions for validation without sending requests to the server for each validation. Here is an example:

@jsvalidator

syntax: @jsvalidator(validation_function_name)

The following is the definition of custom JavaScript function.

ValidationFunction(val, vmsgs)

val: The input data.

vmsgs: The validation message holder object. You can add an invalidate message by adding a new property. If you want to clear the specific message, assign an empty string to the property.

Returns: Boolean. True if the data is valid.

<zk>
    <fragment viewModel="@id('vm') @init('foo.BarVM')" someprop="@bind(vm.prop1)"><![CDATA[
        <input type="text" value="@bind(someprop) @jsvalidator('validateExample')"/>
        <span textContent="@load(vmsgs['foo'])"/>
    ]]></fragment>
    <script type="text/javascript">
        function validateExample(val, vmsgs) {
            var isValid = someValidationProcess(val);
            vmsgs['foo'] = isValid ? '' : 'Invalid value';
            return isValid;
        }
    </script>
</zk>

In this example, a custom JavaScript function validateExample is used to validate a property client-side and show error messages accordingly.

The Differences Between @validator and @jsvalidator

Here are the key differences between @validator and @jsvalidator in ZK:

Catalogue	@validator	@jsvalidator
Validate at	Server side	Client side
ZK form validation	Supported	Not supported
Validation message holder	Initialized in validationMessages	An implicit `vmsgs` object

It’s recommended to use server-side @validator for most cases due to security concerns, but you can use client-side @jsvalidator for instant feedback requirements like password strength or number range validation.

Event Handling

ZK provides the ability to handle events in ViewModel by using @command or @global-command attributes on HTML elements. The ViewModels can execute commands based on DOM events such as onclick, onkeydown, onchange, etc. Here are some of the supported events and corresponding ZK Event objects:

ZK Event object	DOM event
MouseEvent	onclick
	oncontextmenu
	ondblclick
	onmousedown
	onmouseenter
	onmouseleave
	onmouseover
	onmouseout
	onmouseup
	ondrag
KeyEvent	onkeydown
	onkeypress
	onkeyup
InputEvent	onchange
InputEvent	oninput
CheckEvent	onchange (checkbox)
CheckEvent	oninput (checkbox)
SelectionEvent	onselect
DropEvent	ondrop
Event	onblur
	onfocus
	onfocusin
	onfocusout

For more details on retrieving the event object, you can refer to the Retrieve Event Object documentation.

Properties

The Fragment component supports the following properties:

content: Specify the content of the component.
src: Specify the URI of an external content file.
recoverId: Specify the recovery ID.

Supported Events

Name	Event Type	Description
`onRecover`	Event: Event	Represents an event sent back to the server caused by an offline recovery.

Supported Children

*NONE: This component does not support any child components.
