CE
PE
EE

since 5.0.0

Employment/Purpose

A fisheye item

Common Use Cases

  • Toolbar-style navigation — place multiple <fisheye> items inside a <fisheyebar> to build a Mac-style dock or application launcher where icons magnify on hover.
  • Icon-only action triggers — use the image and label attributes together with onClick to give users a compact, visually rich way to invoke commands without cluttering the UI with text buttons.
  • Dynamic image items — when icon artwork must be generated at runtime (e.g. user avatars or data-driven thumbnails), set the image via imageContent from a <zscript> block or a ViewModel, letting the fisheye item render the programmatically created image.

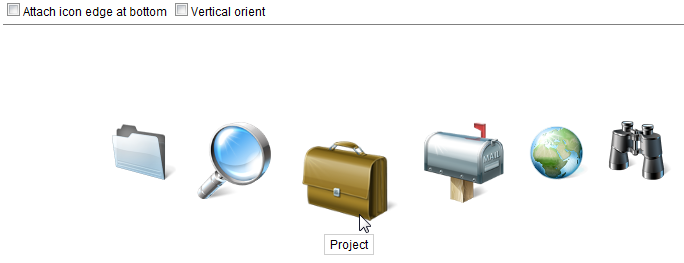

Example

<zk>
    <div height="450px">
        <checkbox label="Attach icon edge at bottom"
            onCheck='fsb.attachEdge=self.checked?"bottom":"top"' />
        <checkbox label="Vertical orient"
            onCheck='fsb.orient=self.checked?"vertical":"horizontal"' />
        <separator bar="true" />
        <fisheyebar id="fsb" style="position:absolute;margin:80px 150px;"
            attachEdge="top" itemWidth="80" itemHeight="80" itemMaxHeight="160" itemMaxWidth="160">
            <fisheye image="/img/Centigrade-Widget-Icons/FolderABlue-128x128.png" label="Folder"
                onClick="alert(self.label)" />
            <fisheye image="/img/Centigrade-Widget-Icons/ReadingGlass-128x128.png" label="Reading Glasses"
                onClick="alert(self.label)" />
            <fisheye image="/img/Centigrade-Widget-Icons/Briefcase-128x128.png" label="Project"
                onClick="alert(self.label)" />
            <fisheye image="/img/Centigrade-Widget-Icons/MailboxFlag-128x128.png"
                label="Email" onClick="alert(self.label)" />
            <fisheye image="/img/Centigrade-Widget-Icons/Globe-128x128.png"
                label="Globe" onClick="alert(self.label)" />
            <fisheye image="/img/Centigrade-Widget-Icons/Spyglass-128x128.png" label="Spyglass"
                onClick="alert(self.label)" />
        </fisheyebar>
    </div>
</zk>

Properties

Supported Events

Inherited Supported Events: LabelImageElement

Supported Children

*None

Inherited Functions

Please refer to LabelImageElement for inherited functions.
