CE
PE
EE

since 8.6.0

Employment/Purpose

Orgchildren contains a collection of Orgitem components. It is main body of the Organigram and it also the main body of an Orgitem’s children.

Common Use Cases

  • Direct child of <organigram> — Every <organigram> must contain exactly one top-level <orgchildren> as its immediate child. Place all root <orgitem> elements inside it.
  • Nesting branch nodes — When an <orgitem> has subordinates, wrap those subordinates in a nested <orgchildren> directly inside the parent <orgitem>. This establishes the tree hierarchy rendered by Organigram.
  • Flat root with multiple peers — To display an org chart with several top-level nodes side by side, place multiple sibling <orgitem> elements inside the single root <orgchildren>.
<organigram width="600px">
    <orgchildren>
        <orgitem label="CEO">
            <orgchildren>
                <orgitem label="CTO"/>
                <orgitem label="CFO"/>
            </orgchildren>
        </orgitem>
    </orgchildren>
</organigram>

Example

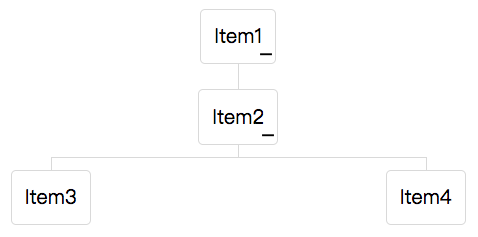

Orgchildren example

    <organigram width="600px">
        <orgchildren>
            <orgitem label="Item1">
                <orgchildren>
                    <orgitem label="Item2">
                        <orgchildren>
                            <orgitem label="Item3"/>
                            <orgitem label="Item4"/>
                        </orgchildren>
                    </orgitem>
                </orgchildren>
            </orgitem>
        </orgchildren>
    </organigram>

Supported Events

Supported Children

* Orgitem
