Chart

• Demonstration: Chart
• Java API: org.zkoss.zul.Chart
• JavaScript API: zul.wgt.Chart

CE

PE

EE

Employment/Purpose

A chart is used to show a set of data as a graph. It helps users to judge things with a snapshot. To use a chart component , developers must prepare a ChartModel and a ChartEngine. Developers also set proper chart type, and the threeD (3D) attribute to draw a proper chart. The model and type must match each other, or the result is unpredictable. The 3D chart is not supported on all chart types.

Common Use Cases

Bar Chart with CategoryModel

Use type="bar" together with a CategoryModel to compare values across categories.

<zscript><![CDATA[
    import org.zkoss.zul.*;
    CategoryModel salesModel = new SimpleCategoryModel();
    salesModel.setValue("Revenue", "Q1", new Integer(120));
    salesModel.setValue("Revenue", "Q2", new Integer(150));
    salesModel.setValue("Revenue", "Q3", new Integer(130));
    salesModel.setValue("Revenue", "Q4", new Integer(170));
]]></zscript>
<chart type="bar" title="Sales" width="600px" height="300px"
       xAxis="Quarter" yAxis="Revenue" model="${salesModel}"/>

Pie Chart

Use type="pie" with a PieModel to show proportional data.

<zscript><![CDATA[
    import org.zkoss.zul.*;
    PieModel pieModel = new SimplePieModel();
    pieModel.setValue("Market A", 35.5);
    pieModel.setValue("Market B", 28.3);
    pieModel.setValue("Market C", 21.2);
    pieModel.setValue("Market D", 15.0);
]]></zscript>
<chart type="pie" title="Market Share" width="500px" height="250px"
       threeD="true" showLegend="true" model="${pieModel}"/>

Time Series Chart

Use type="time_series" with an XYModel and set period and dateFormat for date-based axes.

<zscript><![CDATA[
    import org.zkoss.zul.*;
    XYModel tsModel = new SimpleXYModel();
    tsModel.addValue("CPU", new Integer(0), new Integer(45));
    tsModel.addValue("CPU", new Integer(1), new Integer(52));
    tsModel.addValue("CPU", new Integer(2), new Integer(48));
    tsModel.addValue("CPU", new Integer(3), new Integer(61));
]]></zscript>
<chart type="time_series" title="CPU Usage" width="700px" height="350px"
       period="minute" dateFormat="HH:mm" model="${tsModel}"/>

Example

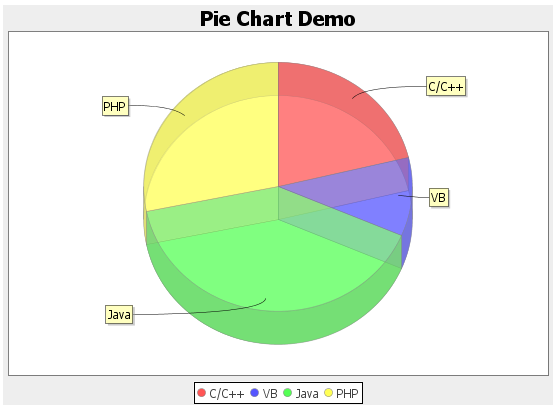

Pie Chart

<chart id="mychart" title="Pie Chart Demo" width="550" height="400"
    type="pie" threeD="true" fgAlpha="128">
    <attribute name="onClick"><![CDATA[
        Area area = event.getAreaComponent();
        if (area != null)
            alert(""+area.getAttribute("entity")+":"+area.getTooltiptext());
    ]]></attribute>
    <zscript><![CDATA[
        PieModel model = new SimplePieModel();
        model.setValue("C/C++", new Double(21.2));
        model.setValue("VB", new Double(10.2));
        model.setValue("Java", new Double(40.4));
        model.setValue("PHP", new Double(28.2));
        mychart.setModel(model);
    ]]></zscript>
</chart>

Pie Chart 3D

<chart id="piechart3d" title="Pie Chart 3D" width="500" height="250"
        type="pie" threeD="true" fgAlpha="128">
    <zscript><![CDATA[
        PieModel piemodel = new SimplePieModel();
        piemodel.setValue("C/C++", new Double(12.5));
        piemodel.setValue("Java", new Double(50.2));
        piemodel.setValue("VB", new Double(20.5));
        piemodel.setValue("PHP", new Double(15.5));
        piechart3d.setModel(piemodel);
    ]]></zscript>
</chart>

Ring Chart

<chart id="ringchart" title="Ring Chart" width="500" height="250"
        type="ring" threeD="false" fgAlpha="128">
    <zscript><![CDATA[
        PieModel piemodel = new SimplePieModel();
        piemodel.setValue("C/C++", new Double(12.5));
        piemodel.setValue("Java", new Double(50.2));
        piemodel.setValue("VB", new Double(20.5));
        piemodel.setValue("PHP", new Double(15.5));
        ringchart.setModel(piemodel);
    ]]></zscript>
</chart>

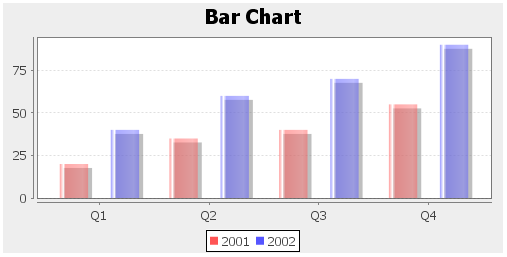

Bar Chart

<chart id="barchart" title="Bar Chart" width="500" height="250"
        type="bar" threeD="false" fgAlpha="128">
    <zscript><![CDATA[
        CategoryModel catmodel = new SimpleCategoryModel();
        catmodel.setValue("2001", "Q1", new Integer(20));
        catmodel.setValue("2001", "Q2", new Integer(35));
        catmodel.setValue("2001", "Q3", new Integer(40));
        catmodel.setValue("2001", "Q4", new Integer(55));
        catmodel.setValue("2002", "Q1", new Integer(40));
        catmodel.setValue("2002", "Q2", new Integer(60));
        catmodel.setValue("2002", "Q3", new Integer(70));
        catmodel.setValue("2002", "Q4", new Integer(90));
        barchart.setModel(catmodel);
    ]]></zscript>
</chart>

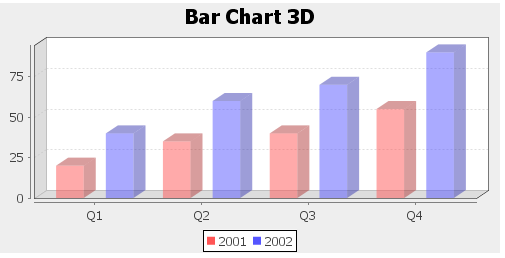

Bar Chart 3D

<chart id="barchart3d" title="Bar Chart 3D" width="500" height="250"
        type="bar" threeD="true" fgAlpha="128">
    <zscript><![CDATA[
        CategoryModel catmodel = new SimpleCategoryModel();
        catmodel.setValue("2001", "Q1", new Integer(20));
        catmodel.setValue("2001", "Q2", new Integer(35));
        catmodel.setValue("2001", "Q3", new Integer(40));
        catmodel.setValue("2001", "Q4", new Integer(55));
        catmodel.setValue("2002", "Q1", new Integer(40));
        catmodel.setValue("2002", "Q2", new Integer(60));
        catmodel.setValue("2002", "Q3", new Integer(70));
        catmodel.setValue("2002", "Q4", new Integer(90));
        barchart3d.setModel(catmodel);
    ]]></zscript>
</chart>

Stacked Bar

<chart id="sbarchart" title="Stacked Bar" width="500" height="250"
        type="stacked_bar" threeD="false" fgAlpha="128">
    <zscript><![CDATA[
        CategoryModel catmodel = new SimpleCategoryModel();
        catmodel.setValue("2001", "Q1", new Integer(20));
        catmodel.setValue("2001", "Q2", new Integer(35));
        catmodel.setValue("2001", "Q3", new Integer(40));
        catmodel.setValue("2001", "Q4", new Integer(55));
        catmodel.setValue("2002", "Q1", new Integer(40));
        catmodel.setValue("2002", "Q2", new Integer(60));
        catmodel.setValue("2002", "Q3", new Integer(70));
        catmodel.setValue("2002", "Q4", new Integer(90));
        sbarchart.setModel(catmodel);
    ]]></zscript>
</chart>

Stacked Bar 3D

<chart id="sbarchart3d" title="Stacked Bar 3D" width="500"
        height="250" type="stacked_bar" threeD="true" fgAlpha="128">
    <zscript><![CDATA[
        CategoryModel catmodel = new SimpleCategoryModel();
        catmodel.setValue("2001", "Q1", new Integer(20));
        catmodel.setValue("2001", "Q2", new Integer(35));
        catmodel.setValue("2001", "Q3", new Integer(40));
        catmodel.setValue("2001", "Q4", new Integer(55));
        catmodel.setValue("2002", "Q1", new Integer(40));
        catmodel.setValue("2002", "Q2", new Integer(60));
        catmodel.setValue("2002", "Q3", new Integer(70));
        catmodel.setValue("2002", "Q4", new Integer(90));
        sbarchart3d.setModel(catmodel);
    ]]></zscript>
</chart>

Line Chart

<chart id="linechart" title="Line Chart" width="500" height="250"
        type="line" threeD="false" fgAlpha="128">
    <zscript><![CDATA[
        CategoryModel catmodel = new SimpleCategoryModel();
        catmodel.setValue("2001", "Q1", new Integer(20));
        catmodel.setValue("2001", "Q2", new Integer(35));
        catmodel.setValue("2001", "Q3", new Integer(40));
        catmodel.setValue("2001", "Q4", new Integer(55));
        catmodel.setValue("2002", "Q1", new Integer(40));
        catmodel.setValue("2002", "Q2", new Integer(60));
        catmodel.setValue("2002", "Q3", new Integer(70));
        catmodel.setValue("2002", "Q4", new Integer(90));
        linechart.setModel(catmodel);
    ]]></zscript>
</chart>

Line Chart 3D

<chart id="linechart3d" title="Line Chart 3D" width="500"
        height="250" type="line" threeD="true" fgAlpha="128">
    <zscript><![CDATA[
        CategoryModel catmodel = new SimpleCategoryModel();
        catmodel.setValue("2001", "Q1", new Integer(20));
        catmodel.setValue("2001", "Q2", new Integer(35));
        catmodel.setValue("2001", "Q3", new Integer(40));
        catmodel.setValue("2001", "Q4", new Integer(55));
        catmodel.setValue("2002", "Q1", new Integer(40));
        catmodel.setValue("2002", "Q2", new Integer(60));
        catmodel.setValue("2002", "Q3", new Integer(70));
        catmodel.setValue("2002", "Q4", new Integer(90));
        linechart3d.setModel(catmodel);
    ]]></zscript>
</chart>

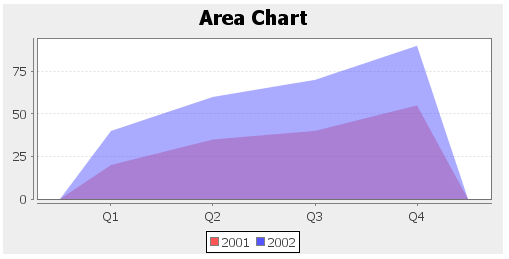

Area Chart

<chart id="areachart" title="Area Chart" width="500" height="250"
        type="area" threeD="false" fgAlpha="128">
    <zscript><![CDATA[
        CategoryModel catmodel = new SimpleCategoryModel();
        catmodel.setValue("2001", "Q1", new Integer(20));
        catmodel.setValue("2001", "Q2", new Integer(35));
        catmodel.setValue("2001", "Q3", new Integer(40));
        catmodel.setValue("2001", "Q4", new Integer(55));
        catmodel.setValue("2002", "Q1", new Integer(40));
        catmodel.setValue("2002", "Q2", new Integer(60));
        catmodel.setValue("2002", "Q3", new Integer(70));
        catmodel.setValue("2002", "Q4", new Integer(90));
        areachart.setModel(catmodel);
    ]]></zscript>
</chart>

Stacked Area Chart

<chart id="sareachart" title="Stacked Area Chart" width="500"
        height="250" type="stacked_area" threeD="false" fgAlpha="128">
    <zscript><![CDATA[
        CategoryModel catmodel = new SimpleCategoryModel();
        catmodel.setValue("2001", "Q1", new Integer(20));
        catmodel.setValue("2001", "Q2", new Integer(35));
        catmodel.setValue("2001", "Q3", new Integer(40));
        catmodel.setValue("2001", "Q4", new Integer(55));
        catmodel.setValue("2002", "Q1", new Integer(40));
        catmodel.setValue("2002", "Q2", new Integer(60));
        catmodel.setValue("2002", "Q3", new Integer(70));
        catmodel.setValue("2002", "Q4", new Integer(90));
        sareachart.setModel(catmodel);
    ]]></zscript>
</chart>

Waterfall Chart

<chart id="waterfall" title="Waterfall Chart" width="500"
        height="250" type="waterfall" threeD="false" fgAlpha="128">
    <zscript><![CDATA[
        CategoryModel catmodel = new SimpleCategoryModel();
        catmodel.setValue("2001", "Q1", new Integer(20));
        catmodel.setValue("2001", "Q2", new Integer(35));
        catmodel.setValue("2001", "Q3", new Integer(40));
        catmodel.setValue("2001", "Q4", new Integer(55));
        catmodel.setValue("2002", "Q1", new Integer(40));
        catmodel.setValue("2002", "Q2", new Integer(60));
        catmodel.setValue("2002", "Q3", new Integer(70));
        catmodel.setValue("2002", "Q4", new Integer(90));
        waterfall.setModel(catmodel);
    ]]></zscript>
</chart>

Polar Chart

<chart id="polar" title="Polar Chart" width="500" height="250"
        type="polar" threeD="false" fgAlpha="128">
    <zscript><![CDATA[
        XYModel xymodel = new SimpleXYModel();
        xymodel.addValue("2001", new Integer(20), new Integer(120));
        xymodel.addValue("2001", new Integer(40), new Integer(135));
        xymodel.addValue("2001", new Integer(60), new Integer(140));
        xymodel.addValue("2001", new Integer(80), new Integer(160));

        xymodel.addValue("2002", new Integer(30), new Integer(120));
        xymodel.addValue("2002", new Integer(50), new Integer(135));
        xymodel.addValue("2002", new Integer(70), new Integer(140));
        xymodel.addValue("2002", new Integer(90), new Integer(160));
        polar.setModel(xymodel);
    ]]></zscript>
</chart>

Scatter Chart

<chart id="scatter" title="Scatter Chart" width="500" height="250"
        type="scatter" threeD="false" fgAlpha="128">
    <zscript><![CDATA[
        XYModel xymodel = new SimpleXYModel();
        xymodel.addValue("2001", new Integer(20), new Integer(120));
        xymodel.addValue("2001", new Integer(40), new Integer(135));
        xymodel.addValue("2001", new Integer(60), new Integer(140));
        xymodel.addValue("2001", new Integer(80), new Integer(160));

        xymodel.addValue("2002", new Integer(30), new Integer(120));
        xymodel.addValue("2002", new Integer(50), new Integer(135));
        xymodel.addValue("2002", new Integer(70), new Integer(140));
        xymodel.addValue("2002", new Integer(90), new Integer(160));
        scatter.setModel(xymodel);
    ]]></zscript>
</chart>

Time Series Chart

<chart id="timeseries" title="Time Series Chart" width="500"
        height="250" type="time_series" threeD="false" fgAlpha="128">
    <zscript><![CDATA[
        XYModel xymodel = new SimpleXYModel();
        xymodel.addValue("2001", new Integer(20), new Integer(120));
        xymodel.addValue("2001", new Integer(40), new Integer(135));
        xymodel.addValue("2001", new Integer(60), new Integer(140));
        xymodel.addValue("2001", new Integer(80), new Integer(160));

        xymodel.addValue("2002", new Integer(30), new Integer(120));
        xymodel.addValue("2002", new Integer(50), new Integer(135));
        xymodel.addValue("2002", new Integer(70), new Integer(140));
        xymodel.addValue("2002", new Integer(90), new Integer(160));
        timeseries.setModel(xymodel);
    ]]></zscript>
</chart>

XY Area Chart

<chart id="xyarea" title="XY Area Chart" width="500" height="250"
        type="area" threeD="false" fgAlpha="128">
    <zscript><![CDATA[
        XYModel xymodel = new SimpleXYModel();
        xymodel.addValue("2001", new Integer(20), new Integer(120));
        xymodel.addValue("2001", new Integer(40), new Integer(135));
        xymodel.addValue("2001", new Integer(60), new Integer(140));
        xymodel.addValue("2001", new Integer(80), new Integer(160));

        xymodel.addValue("2002", new Integer(30), new Integer(120));
        xymodel.addValue("2002", new Integer(50), new Integer(135));
        xymodel.addValue("2002", new Integer(70), new Integer(140));
        xymodel.addValue("2002", new Integer(90), new Integer(160));
        xyarea.setModel(xymodel);
    ]]></zscript>
</chart>

XY Line Chart

<chart id="xyline" title="XY Line Chart" width="500" height="250"
        type="line" threeD="false" fgAlpha="128">
    <zscript><![CDATA[
        XYModel xymodel = new SimpleXYModel();
        xymodel.addValue("2001", new Integer(20), new Integer(120));
        xymodel.addValue("2001", new Integer(40), new Integer(135));
        xymodel.addValue("2001", new Integer(60), new Integer(140));
        xymodel.addValue("2001", new Integer(80), new Integer(160));

        xymodel.addValue("2002", new Integer(30), new Integer(120));
        xymodel.addValue("2002", new Integer(50), new Integer(135));
        xymodel.addValue("2002", new Integer(70), new Integer(140));
        xymodel.addValue("2002", new Integer(90), new Integer(160));
        xyline.setModel(xymodel);
    ]]></zscript>
</chart>

Step Area Chart

<chart id="steparea" title="Step Area Chart" width="500"
        height="250" type="step_area" threeD="false" fgAlpha="128">
    <zscript><![CDATA[
        XYModel xymodel = new SimpleXYModel();
        xymodel.addValue("2001", new Integer(20), new Integer(120));
        xymodel.addValue("2001", new Integer(40), new Integer(135));
        xymodel.addValue("2001", new Integer(60), new Integer(140));
        xymodel.addValue("2001", new Integer(80), new Integer(160));

        xymodel.addValue("2002", new Integer(30), new Integer(120));
        xymodel.addValue("2002", new Integer(50), new Integer(135));
        xymodel.addValue("2002", new Integer(70), new Integer(140));
        xymodel.addValue("2002", new Integer(90), new Integer(160));
        steparea.setModel(xymodel);
    ]]></zscript>
</chart>

Step Chart

<chart id="step" title="Step Chart" width="500" height="250"
        type="step" threeD="false" fgAlpha="128">
    <zscript><![CDATA[
         public Date time(int year, int month, int day, int hour, int minute, int second) {
            final java.util.Calendar calendar = java.util.Calendar.getInstance(TimeZone.getTimeZone("GMT"));
            calendar.set(year, month-1, day, hour, minute, second);
            final Date result = calendar.getTime();
            return result;
        }
        XYModel datemodel = new SimpleXYModel();
        datemodel.addValue("2001", new Long(time(2001, 5, 2, 1, 10, 15).getTime()), new Integer(120));
        datemodel.addValue("2001", new Long(time(2001, 5, 2, 2, 10, 15).getTime()), new Integer(135));
        datemodel.addValue("2001", new Long(time(2001, 5, 2, 3, 10, 15).getTime()), new Integer(140));
        datemodel.addValue("2001", new Long(time(2001, 5, 2, 4, 10, 15).getTime()), new Integer(160));

        datemodel.addValue("2002", new Long(time(2001, 5, 2, 1, 10, 20).getTime()), new Integer(125));
        datemodel.addValue("2002", new Long(time(2001, 5, 2, 2, 10, 20).getTime()), new Integer(130));
        datemodel.addValue("2002", new Long(time(2001, 5, 2, 3, 10, 20).getTime()), new Integer(120));
        datemodel.addValue("2002", new Long(time(2001, 5, 2, 4, 10, 20).getTime()), new Integer(180));
        step.setModel(datemodel);
    ]]></zscript>
</chart>

XY Stacked Area Chart

<chart id="xystackedarea" title="XY Stacked Area Chart" width="500"
        height="250" type="stacked_area" threeD="false" fgAlpha="128">
    <zscript><![CDATA[
        XYModel xymodel = new SimpleXYModel();
        xymodel.addValue("2001", new Integer(20), new Integer(120));
        xymodel.addValue("2001", new Integer(40), new Integer(135));
        xymodel.addValue("2001", new Integer(60), new Integer(140));
        xymodel.addValue("2001", new Integer(80), new Integer(160));

        xymodel.addValue("2002", new Integer(30), new Integer(120));
        xymodel.addValue("2002", new Integer(50), new Integer(135));
        xymodel.addValue("2002", new Integer(70), new Integer(140));
        xymodel.addValue("2002", new Integer(90), new Integer(160));
        xystackedarea.setModel(xymodel);
    ]]></zscript>
</chart>

XY Bar Chart

<chart id="xybar" title="XY Bar Chart" width="500" height="250"
        type="bar" threeD="false" fgAlpha="128">
    <zscript><![CDATA[
        XYModel xymodel = new SimpleXYModel();
        xymodel.addValue("2001", new Integer(20), new Integer(120));
        xymodel.addValue("2001", new Integer(40), new Integer(135));
        xymodel.addValue("2001", new Integer(60), new Integer(140));
        xymodel.addValue("2001", new Integer(80), new Integer(160));

        xymodel.addValue("2002", new Integer(30), new Integer(120));
        xymodel.addValue("2002", new Integer(50), new Integer(135));
        xymodel.addValue("2002", new Integer(70), new Integer(140));
        xymodel.addValue("2002", new Integer(90), new Integer(160));
        xybar.setModel(xymodel);
    ]]></zscript>
</chart>

Histogram Chart

<chart id="histogram" title="Histogram Chart" width="500"
        height="250" type="histogram" threeD="false" fgAlpha="128">
    <zscript><![CDATA[
        XYModel xymodel = new SimpleXYModel();
        xymodel.addValue("2001", new Integer(20), new Integer(120));
        xymodel.addValue("2001", new Integer(40), new Integer(135));
        xymodel.addValue("2001", new Integer(60), new Integer(140));
        xymodel.addValue("2001", new Integer(80), new Integer(160));

        xymodel.addValue("2002", new Integer(30), new Integer(120));
        xymodel.addValue("2002", new Integer(50), new Integer(135));
        xymodel.addValue("2002", new Integer(70), new Integer(140));
        xymodel.addValue("2002", new Integer(90), new Integer(160));
        histogram.setModel(xymodel);
    ]]></zscript>
</chart>

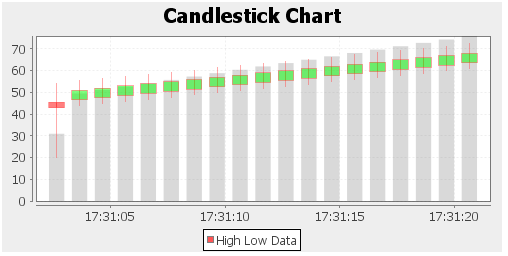

Candlestick Chart

<chart id="candlestick" title="Candlestick Chart" width="500"
        height="250" type="candlestick" threeD="false" fgAlpha="128">
    <zscript><![CDATA[
        HiLoModel hilomodel = new SimpleHiLoModel();
        long d = System.currentTimeMillis();
        hilomodel.addValue(new Date(d),  new Double(45.5),  new Double(54.2), new Double(19.9), new Double(42.8), new Double(20));
        hilomodel.addValue(new Date(d+1000),  new Double(46.5),  new Double(55.2),  new Double(43.8), new Double(50.9),   new Double(32));
        hilomodel.addValue(new Date(d+2000),  new Double(47.5),  new Double(56.2),  new Double(44.8), new Double(51.9),   new Double(33));
        hilomodel.addValue(new Date(d+3000),  new Double(48.5),  new Double(57.2),  new Double(45.8), new Double(52.9),   new Double(34));
        hilomodel.addValue(new Date(d+4000),  new Double(49.5),  new Double(58.2),  new Double(46.8), new Double(53.9),   new Double(35));
        hilomodel.addValue(new Date(d+5000),  new Double(50.5),  new Double(59.2),  new Double(47.8), new Double(54.9),   new Double(36));
        hilomodel.addValue(new Date(d+6000),  new Double(51.5),  new Double(60.2),  new Double(48.8), new Double(55.9),   new Double(37));
        hilomodel.addValue(new Date(d+7000),  new Double(52.5),  new Double(61.2),  new Double(49.8), new Double(56.9),   new Double(38));
        hilomodel.addValue(new Date(d+8000),  new Double(53.5),  new Double(62.2),  new Double(50.8), new Double(57.9),   new Double(39));
        hilomodel.addValue(new Date(d+9000),  new Double(54.5),  new Double(63.2),  new Double(51.8), new Double(58.9),   new Double(40));
        hilomodel.addValue(new Date(d+10000),  new Double(55.5),  new Double(64.2),  new Double(52.8), new Double(59.9),   new Double(41));
        hilomodel.addValue(new Date(d+11000),  new Double(56.5),  new Double(65.2),  new Double(53.8), new Double(60.9),   new Double(42));
        hilomodel.addValue(new Date(d+12000),  new Double(57.5),  new Double(66.2),  new Double(54.8), new Double(61.9),   new Double(43));
        hilomodel.addValue(new Date(d+13000),  new Double(58.5),  new Double(67.2),  new Double(55.8), new Double(62.9),   new Double(44));
        hilomodel.addValue(new Date(d+14000),  new Double(59.5),  new Double(68.2),  new Double(56.8), new Double(63.9),   new Double(45));
        hilomodel.addValue(new Date(d+15000),  new Double(60.5),  new Double(69.2),  new Double(57.8), new Double(64.9),   new Double(46));
        hilomodel.addValue(new Date(d+16000),  new Double(61.5),  new Double(70.2),  new Double(58.8), new Double(65.9),   new Double(47));
        hilomodel.addValue(new Date(d+17000),  new Double(62.5),  new Double(71.2),  new Double(59.8), new Double(66.9),   new Double(48));
        hilomodel.addValue(new Date(d+18000),  new Double(63.5),  new Double(72.2),  new Double(60.8), new Double(67.9),   new Double(49));
        candlestick.setModel(hilomodel);
    ]]></zscript>
</chart>

High Low Chart

<chart id="highlow" title="High Low Chart" width="500" height="250"
        type="highlow" threeD="false" fgAlpha="128" dateFormat="yyyy/MM/dd">
    <zscript><![CDATA[
        HiLoModel hilomodel = new SimpleHiLoModel();
        long d = System.currentTimeMillis();
        hilomodel.addValue(new Date(d),  new Double(45.5),  new Double(54.2), new Double(19.9), new Double(42.8), new Double(20));
        hilomodel.addValue(new Date(d+1000),  new Double(46.5),  new Double(55.2),  new Double(43.8), new Double(50.9),   new Double(32));
        hilomodel.addValue(new Date(d+2000),  new Double(47.5),  new Double(56.2),  new Double(44.8), new Double(51.9),   new Double(33));
        hilomodel.addValue(new Date(d+3000),  new Double(48.5),  new Double(57.2),  new Double(45.8), new Double(52.9),   new Double(34));
        hilomodel.addValue(new Date(d+4000),  new Double(49.5),  new Double(58.2),  new Double(46.8), new Double(53.9),   new Double(35));
        hilomodel.addValue(new Date(d+5000),  new Double(50.5),  new Double(59.2),  new Double(47.8), new Double(54.9),   new Double(36));
        hilomodel.addValue(new Date(d+6000),  new Double(51.5),  new Double(60.2),  new Double(48.8), new Double(55.9),   new Double(37));
        hilomodel.addValue(new Date(d+7000),  new Double(52.5),  new Double(61.2),  new Double(49.8), new Double(56.9),   new Double(38));
        hilomodel.addValue(new Date(d+8000),  new Double(53.5),  new Double(62.2),  new Double(50.8), new Double(57.9),   new Double(39));
        hilomodel.addValue(new Date(d+9000),  new Double(54.5),  new Double(63.2),  new Double(51.8), new Double(58.9),   new Double(40));
        hilomodel.addValue(new Date(d+10000),  new Double(55.5),  new Double(64.2),  new Double(52.8), new Double(59.9),   new Double(41));
        hilomodel.addValue(new Date(d+11000),  new Double(56.5),  new Double(65.2),  new Double(53.8), new Double(60.9),   new Double(42));
        hilomodel.addValue(new Date(d+12000),  new Double(57.5),  new Double(66.2),  new Double(54.8), new Double(61.9),   new Double(43));
        hilomodel.addValue(new Date(d+13000),  new Double(58.5),  new Double(67.2),  new Double(55.8), new Double(62.9),   new Double(44));
        hilomodel.addValue(new Date(d+14000),  new Double(59.5),  new Double(68.2),  new Double(56.8), new Double(63.9),   new Double(45));
        hilomodel.addValue(new Date(d+15000),  new Double(60.5),  new Double(69.2),  new Double(57.8), new Double(64.9),   new Double(46));
        hilomodel.addValue(new Date(d+16000),  new Double(61.5),  new Double(70.2),  new Double(58.8), new Double(65.9),   new Double(47));
        hilomodel.addValue(new Date(d+17000),  new Double(62.5),  new Double(71.2),  new Double(59.8), new Double(66.9),   new Double(48));
        hilomodel.addValue(new Date(d+18000),  new Double(63.5),  new Double(72.2),  new Double(60.8), new Double(67.9),   new Double(49));
        highlow.setModel(hilomodel);
    ]]></zscript>
</chart>

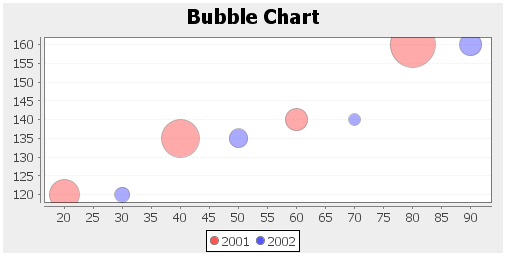

Bubble Chart

<chart id="bubble" title="Bubble Chart" width="500" height="250"
        type="bubble" threeD="false" fgAlpha="128">
    <zscript><![CDATA[
        XYZModel xyzmodel = new SimpleXYZModel();
        xyzmodel.addValue("2001", new Integer(20), new Integer(120), new Integer(8));
        xyzmodel.addValue("2001", new Integer(40), new Integer(135), new Integer(10));
        xyzmodel.addValue("2001", new Integer(60), new Integer(140), new Integer(6));
        xyzmodel.addValue("2001", new Integer(80), new Integer(160), new Integer(12));

        xyzmodel.addValue("2002", new Integer(30), new Integer(120), new Integer(4));
        xyzmodel.addValue("2002", new Integer(50), new Integer(135), new Integer(5));
        xyzmodel.addValue("2002", new Integer(70), new Integer(140), new Integer(3));
        xyzmodel.addValue("2002", new Integer(90), new Integer(160), new Integer(6));
        bubble.setModel(xyzmodel);
    ]]></zscript>
</chart>

Horizontal Bubble Chart

<chart id="hbubble" title="Horizontal Bubble Chart" width="500"
        height="250" type="bubble" threeD="false" fgAlpha="128" orient="horizontal">
    <zscript><![CDATA[
        XYZModel xyzmodel = new SimpleXYZModel();
        xyzmodel.addValue("2001", new Integer(20), new Integer(120), new Integer(8));
        xyzmodel.addValue("2001", new Integer(40), new Integer(135), new Integer(10));
        xyzmodel.addValue("2001", new Integer(60), new Integer(140), new Integer(6));
        xyzmodel.addValue("2001", new Integer(80), new Integer(160), new Integer(12));

        xyzmodel.addValue("2002", new Integer(30), new Integer(120), new Integer(4));
        xyzmodel.addValue("2002", new Integer(50), new Integer(135), new Integer(5));
        xyzmodel.addValue("2002", new Integer(70), new Integer(140), new Integer(3));
        xyzmodel.addValue("2002", new Integer(90), new Integer(160), new Integer(6));
        hbubble.setModel(xyzmodel);
    ]]></zscript>
</chart>

Wafer Map Chart

<chart id="wafermap" title="Wafer Map Chart" width="500"
        height="400" type="wafermap" threeD="false" fgAlpha="128">
    <zscript><![CDATA[
        final int xdim = 30;
        final int ydim = 20;
        final Random random = new Random();
        WaferMapModel wafermodel = new WaferMapModel(xdim, ydim);
        for (int x = 0; x < xdim; x++) {
            for (int y = 0; y < ydim; y++) {
                wafermodel.addValue(random.nextInt(5), x, y);
            }
        }
        wafermap.setModel(wafermodel);
    ]]></zscript>
</chart>

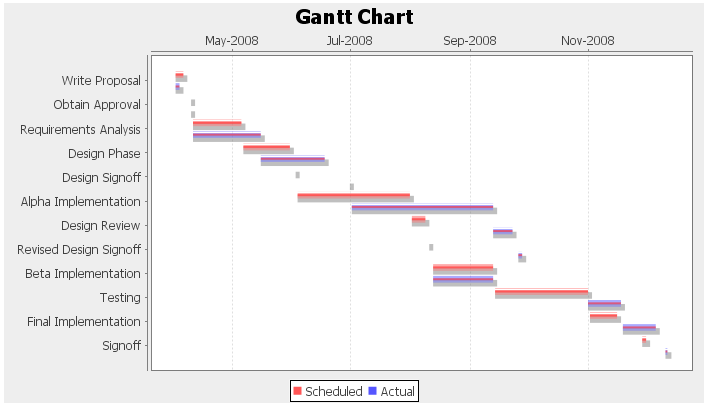

Gantt Chart

<chart id="gantt" title="Gantt Chart" width="700" height="400"
        type="gantt" threeD="false" fgAlpha="128" dateFormat="yyyy/MM/dd" >
    <zscript><![CDATA[
        import org.zkoss.zul.GanttModel.GanttTask;

        public Date date(int year, int month, int day) {
            final java.util.Calendar calendar = java.util.Calendar.getInstance();
            calendar.set(year, month-1, day);
            final Date result = calendar.getTime();
            return result;
        }
        //series, task (task description, start, end, complete percentage)
        GanttModel ganttmodel = new GanttModel();
        ganttmodel.addValue("Scheduled", new GanttTask("Write Proposal", date(2008,4,1), date(2008,4,5), 0.0));
        ganttmodel.addValue("Scheduled", new GanttTask("Obtain Approval", date(2008,4,9), date(2008,4,9), 0.0));
        ganttmodel.addValue("Scheduled", new GanttTask("Requirements Analysis", date(2008,4,10), date(2008,5,5), 0.0));
        ganttmodel.addValue("Scheduled", new GanttTask("Design Phase", date(2008,5,6), date(2008,5,30), 0.0));
        ganttmodel.addValue("Scheduled", new GanttTask("Design Signoff", date(2008,6,2), date(2008,6,2), 0.0));
        ganttmodel.addValue("Scheduled", new GanttTask("Alpha Implementation", date(2008,6,3), date(2008,7,31), 0.0));
        ganttmodel.addValue("Scheduled", new GanttTask("Design Review", date(2008,8,1), date(2008,8,8), 0.0));
        ganttmodel.addValue("Scheduled", new GanttTask("Revised Design Signoff", date(2008,8,10), date(2008,8,10), 0.0));
        ganttmodel.addValue("Scheduled", new GanttTask("Beta Implementation", date(2008,8,12), date(2008,9,12), 0.0));
        ganttmodel.addValue("Scheduled", new GanttTask("Testing", date(2008,9,13), date(2008,10,31), 0.0));
        ganttmodel.addValue("Scheduled", new GanttTask("Final Implementation", date(2008,11,1), date(2008,11,15), 0.0));
        ganttmodel.addValue("Scheduled", new GanttTask("Signoff", date(2008,11,28), date(2008,11,30), 0.0));

        ganttmodel.addValue("Actual", new GanttTask("Write Proposal", date(2008,4,1), date(2008,4,3), 0.0));
        ganttmodel.addValue("Actual", new GanttTask("Obtain Approval", date(2008,4,9), date(2008,4,9), 0.0));
        ganttmodel.addValue("Actual", new GanttTask("Requirements Analysis", date(2008,4,10), date(2008,5,15), 0.0));
        ganttmodel.addValue("Actual", new GanttTask("Design Phase", date(2008,5,15), date(2008,6,17), 0.0));
        ganttmodel.addValue("Actual", new GanttTask("Design Signoff", date(2008,6,30), date(2008,6,30), 0.0));
        ganttmodel.addValue("Actual", new GanttTask("Alpha Implementation", date(2008,7,1), date(2008,9,12), 0.0));
        ganttmodel.addValue("Actual", new GanttTask("Design Review", date(2008,9,12), date(2008,9,22), 0.0));
        ganttmodel.addValue("Actual", new GanttTask("Revised Design Signoff", date(2008,9,25), date(2008,9,27), 0.0));
        ganttmodel.addValue("Actual", new GanttTask("Beta Implementation", date(2008,8,12), date(2008,9,12), 0.0));
        ganttmodel.addValue("Actual", new GanttTask("Testing", date(2008,10,31), date(2008,11,17), 0.0));
        ganttmodel.addValue("Actual", new GanttTask("Final Implementation", date(2008,11,18), date(2008,12,5), 0.0));
        ganttmodel.addValue("Actual", new GanttTask("Signoff", date(2008,12,10), date(2008,12,11), 0.0));
        gantt.setModel(ganttmodel);
    ]]></zscript>
</chart>

Wind Chart

<chart id="wind" title="Wind Plot" width="700" height="400"
        type="wind" threeD="false" fgAlpha="128" dateFormat="yyyy/MM/dd" >
    <zscript><![CDATA[

        public Date date(int year, int month, int day) {
            final java.util.Calendar calendar = java.util.Calendar.getInstance();
            calendar.set(year, month-1, day);
            final Date result = calendar.getTime();
            return result;
        }
        XYZModel windmodel = new SimpleXYZModel();
        //series, date, direction (0-12), force(0-12)
        windmodel.addValue("Wind!", new Long(date(2008, 1, 3).getTime()), new Double(0d), new Double(10.0));
        windmodel.addValue("Wind!", new Long(date(2008, 1, 4).getTime()), new Double(1d), new Double(8.5));
        windmodel.addValue("Wind!", new Long(date(2008, 1, 5).getTime()), new Double(2.0), new Double(10.0));
        windmodel.addValue("Wind!", new Long(date(2008, 1, 6).getTime()), new Double(3.0), new Double(10.0));
        windmodel.addValue("Wind!", new Long(date(2008, 1, 7).getTime()), new Double(4.0), new Double(7.0));
        windmodel.addValue("Wind!", new Long(date(2008, 1, 8).getTime()), new Double(5.0), new Double(10.0));
        windmodel.addValue("Wind!", new Long(date(2008, 1, 9).getTime()), new Double(6.0), new Double(8.0));
        windmodel.addValue("Wind!", new Long(date(2008, 1, 10).getTime()), new Double(7.0), new Double(11.0));
        windmodel.addValue("Wind!", new Long(date(2008, 1, 11).getTime()), new Double(8.0), new Double(10.0));
        windmodel.addValue("Wind!", new Long(date(2008, 1, 12).getTime()), new Double(9.0), new Double(11.0));
        windmodel.addValue("Wind!", new Long(date(2008, 1, 13).getTime()), new Double(10.0), new Double(3.0));
        windmodel.addValue("Wind!", new Long(date(2008, 1, 14).getTime()), new Double(11.0), new Double(9.0));
        windmodel.addValue("Wind!", new Long(date(2008, 1, 15).getTime()), new Double(12.0), new Double(11.0));
        windmodel.addValue("Wind!", new Long(date(2008, 1, 16).getTime()), new Double(0.0), new Double(0.0));
        wind.setModel(windmodel);
    ]]></zscript>
</chart>

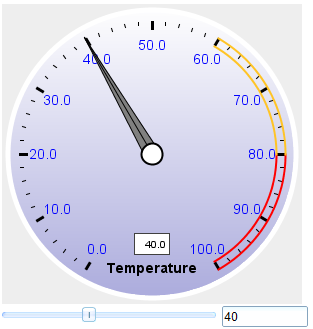

Dial Chart

<window onOK="doOK()" width="350px">
    <chart id="dial" title="Dial Plot" width="300" height="300" type="dial" threeD="false" fgAlpha="128">
    <zscript><![CDATA[

        import org.zkoss.zul.DialModel;
        import org.zkoss.zul.DialModelScale;

        int val= 40;

        DialModel dialmodel = new DialModel();
        DialModelScale scale = dialmodel.newScale(0.0, 100.0, -120.0, -300.0, 10.0, 4);//scale's configuration data
        scale.setText("Temperature");
        scale.newRange(80, 100, "#FF0000", 0.83, 0.89);
        scale.newRange(60, 80, "#FFC426", 0.83, 0.89);
        scale.setValue(val);

        doOK() {
            val = dbx.getValue();
            if (val > 100) {
                val = 100;
            } else if (val < 0) {
                val = 0;
            }
            dbx.value = val;
            slx.curpos = val;
            scale.setValue(val);
            if (val > 80) {
                scale.setNeedleColor(scale.getRange(0).getRangeColor());
            } else if (val > 60) {
                scale.setNeedleColor(scale.getRange(1).getRangeColor());
            } else {
                scale.setNeedleColor(dialmodel.getFrameFgColor());
            }
        }
        dial.setModel(dialmodel);
        ]]></zscript>
    </chart>
    <hbox>
        <slider id="slx" curpos="${val}" onScroll="dbx.value=self.curpos; doOK()"/>
        <intbox id="dbx" value="${val}" onChange="doOK()"/>
    </hbox>
</window>

Properties

Type

Default Value: "pie"

Sets the chart type. The value must be one of the type constants defined on Chart. The model assigned via model must match the chosen type; see the type-model compatibility table in the Employment/Purpose section.

Value	Required Model	3D Support
area	CategoryModel or XYModel	No
bar	CategoryModel	Yes
bubble	XYZModel	No
candlestick	HiLoModel	No
dial	DialModel	No
gantt	GanttModel	No
highlow	HiLoModel	No
histogram	XYModel	No
line	CategoryModel or XYModel	Yes
pie	PieModel	Yes
polar	XYModel	No
ring	PieModel	No
scatter	XYModel	No
stacked_area	CategoryModel or XYModel	No
stacked_bar	CategoryModel	Yes
step	XYModel	No
step_area	XYModel	No
time_series	XYModel	No
wafermap	WaferMapModel	No
waterfall	CategoryModel	No
wind	XYZModel	No

<chart type="bar" width="500px" height="250px"/>

ThreeD

Default Value: false

Sets whether to render the chart in three dimensions. Only chart types that have a 3D peer (bar, line, pie, stacked_bar) support this; all other types silently ignore it.

<chart type="pie" threeD="true" width="500px" height="250px"/>

Title

Default Value: null (no title displayed)

Sets the text shown as the chart’s title.

<chart type="bar" title="Monthly Sales" width="500px" height="250px"/>

XAxis

Default Value: null

Sets the label text displayed along the x-axis.

<chart type="bar" xAxis="Quarter" width="500px" height="250px"/>

YAxis

Default Value: null

Sets the label text displayed along the y-axis.

<chart type="bar" yAxis="Revenue (USD)" width="500px" height="250px"/>

ShowLegend

Default Value: true

Controls whether the chart legend is displayed.

<chart type="pie" showLegend="false" width="500px" height="250px"/>

ShowTooltiptext

Default Value: true

Controls whether a tooltip is popped when the user hovers over a chart area.

<chart type="bar" showTooltiptext="false" width="500px" height="250px"/>

PaneAlpha

Default Value: 255 (fully opaque)

Sets the transparency of the chart pane (plot background). Values range from 0 (fully transparent) to 255 (fully opaque). Values outside this range are silently clamped to 255.

<chart type="bar" paneAlpha="180" width="500px" height="250px"/>

PaneColor

Default Value: null (engine default, typically #EEEEEE)

Sets the background color of the chart pane (plot area). Specify the color in #RRGGBB hexadecimal format. Set to null to restore the engine default.

<chart type="bar" paneColor="#FFFFFF" width="500px" height="250px"/>

FgAlpha

Default Value: 255 (fully opaque)

Sets the transparency of the chart foreground (data series rendering). Values range from 0 (fully transparent) to 255 (fully opaque). Values outside this range are silently clamped to 255.

<chart type="bar" fgAlpha="200" width="500px" height="250px"/>

BgAlpha

Default Value: 255 (fully opaque)

Sets the transparency of the overall chart background. Values range from 0 (fully transparent) to 255 (fully opaque). Values outside this range are silently clamped to 255.

<chart type="pie" bgAlpha="128" width="500px" height="250px"/>

BgColor

Default Value: null (engine default, typically #FFFFFF)

Sets the overall background color of the chart. Specify the color in #RRGGBB hexadecimal format. Set to null to restore the engine default.

<chart type="bar" bgColor="#F5F5F5" width="500px" height="250px"/>

Orient

Default Value: "vertical"

Sets the chart orientation. Applicable to chart types that support an orientation axis (e.g. bar).

Value	Meaning
vertical	Category axis runs horizontally; value axis runs vertically (default)
horizontal	Category axis runs vertically; value axis runs horizontally

<chart type="bar" orient="horizontal" width="500px" height="250px"/>

TimeZone

Default Value: null (uses TimeZones.getCurrent())

Sets the java.util.TimeZone used to render date/time axes in a time_series chart. When null, the default time zone determined by org.zkoss.util.TimeZones.getCurrent() is applied. This property is set programmatically — it cannot be set inline in ZUL because TimeZone has no string constructor; use a composer or MVVM binding.

<chart id="tsChart" type="time_series" period="day"
       width="700px" height="300px"/>

Period

Default Value: null (treated as "millisecond" when unspecified)

Sets the time period unit used on the time axis of a time_series chart.

Value	Meaning
millisecond	Millisecond granularity (default when unset)
second	Second granularity
minute	Minute granularity
hour	Hour granularity
day	Day granularity
week	Week granularity
month	Month granularity
quarter	Quarter granularity
year	Year granularity

<chart type="time_series" period="day" dateFormat="yyyy-MM-dd"
       width="700px" height="300px"/>

DateFormat

Default Value: null (engine default format)

Sets the date format pattern used on date-related chart axes (e.g. time_series). The pattern follows java.text.SimpleDateFormat conventions.

<chart type="time_series" period="month" dateFormat="MMM yyyy"
       width="700px" height="300px"/>

Model

Default Value: null (a default model is auto-created when the chart draws)

Associates a ChartModel with this chart. The model type must match the chosen type; see the type-model compatibility table above. Assigning a new model (even the same instance) always triggers a redraw. Set to null to dissociate the current model.

Build the model in a <zscript> block (declared before the chart) and reference it via EL:

<zscript><![CDATA[
    import org.zkoss.zul.*;
    CategoryModel categoryModel = new SimpleCategoryModel();
    categoryModel.setValue("2024", "Q1", new Integer(25));
    categoryModel.setValue("2024", "Q2", new Integer(38));
    categoryModel.setValue("2024", "Q3", new Integer(42));
    categoryModel.setValue("2024", "Q4", new Integer(55));
]]></zscript>
<chart type="bar" model="${categoryModel}" width="500px" height="250px"/>

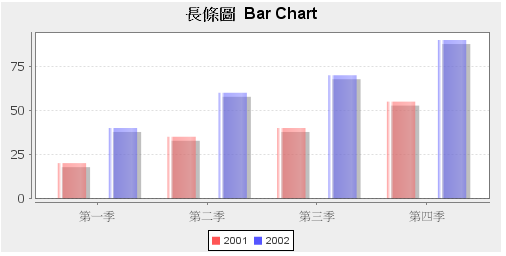

TitleFont

Default Value: null (engine default)

Sets the java.awt.Font used to render the chart title. Useful when the default font does not support the required character set (e.g. Chinese). This property must be set programmatically — it cannot be specified as a ZUL attribute string.

<chart id="myChart" type="bar" title="Sales Report"
       width="500px" height="250px"/>

LegendFont

Default Value: null (engine default)

Sets the java.awt.Font used to render the chart legend. Useful when the default font does not support the required character set (e.g. Chinese). This property must be set programmatically — it cannot be specified as a ZUL attribute string.

<chart id="myChart" type="pie" showLegend="true"
       width="500px" height="250px"/>

XAxisTickFont

Default Value: null (engine default)

Sets the java.awt.Font used to render the tick number labels on the x-axis. Useful when the default font does not support the required character set (e.g. Chinese). This property must be set programmatically.

<chart id="myChart" type="bar" xAxis="Quarter"
       width="500px" height="250px"/>

XAxisFont

Default Value: null (engine default)

Sets the java.awt.Font used to render the x-axis label (the text set via xAxis). Useful when the default font does not support the required character set (e.g. Chinese). This property must be set programmatically.

<chart id="myChart" type="bar" xAxis="Quarter"
       width="500px" height="250px"/>

YAxisTickFont

Default Value: null (engine default)

Sets the java.awt.Font used to render the tick number labels on the y-axis. Useful when the default font does not support the required character set (e.g. Chinese). This property must be set programmatically.

<chart id="myChart" type="bar" yAxis="Revenue"
       width="500px" height="250px"/>

YAxisFont

Default Value: null (engine default)

Sets the java.awt.Font used to render the y-axis label (the text set via yAxis). Useful when the default font does not support the required character set (e.g. Chinese). This property must be set programmatically.

<chart id="myChart" type="bar" yAxis="Revenue"
       width="500px" height="250px"/>

Engine

Default Value: determined by library property org.zkoss.zul.chart.engine.class

Sets the ChartEngine implementation responsible for rendering the chart image. ZK PE/EE ships a JFreeChart-based engine by default. You can supply a custom engine by passing a ChartEngine instance or a fully-qualified class name string.

<chart type="bar" engine="com.example.MyChartEngine"
       width="500px" height="250px"/>

AreaListener

Default Value: null (no custom renderer)

Sets a ChartAreaListener that is called when chart areas are rendered, allowing custom per-area drawing logic. Changing the listener does not automatically trigger a redraw; call smartDraw() explicitly if needed. You can supply a ChartAreaListener instance or a fully-qualified class name string.

<chart type="bar" areaListener="com.example.MyAreaListener"
       width="500px" height="250px"/>

Clicked Area: Series, Legend

In an onClick listener, you can call org.zkoss.zk.ui.event.MouseEvent#getX() and org.zkoss.zk.ui.event.MouseEvent#getY() to get coordinates.

Call org.zkoss.zk.ui.event.MouseEvent#getAreaComponent() to retrieve the area component (org.zkoss.zul.Area) which users click on.

There are several attributes you can get from the clicked Area:

• series: series name
• category: category name, e.g. GanttTask’s description
• entity: could be DATA or LEGEND
• percent: percentage of complete of a gantt task
• start: start value of a gannt task
• end: end value of a gannt task


    @Listen("onClick = #gantt")
    public  void drilldown(MouseEvent event) {
        final Area area = (Area)event.getAreaComponent();
        if (area != null)
            Messagebox.show(area.getAttribute("category")+": "+area.getTooltiptext());
    }

Charts Support Setting the Font

We can now specify what font we want a chart to use. This is useful when employing a foreign language within your chart. The example demonstrates setting a font and using it with a foreign language, in this case Chinese.

    <zscript>
        import java.awt.Font;
        String fontname = "Dialog";
        Font tfont = new Font(fontname, Font.BOLD, 16); //for title
        Font lfont = new Font(fontname, Font.PLAIN, 10); //for legend
        Font lbfont = new Font(fontname, Font.PLAIN, 12); //for label


        CategoryModel catmodel = new SimpleCategoryModel();
        catmodel.setValue("2001", "第一季", new Integer(20));
        catmodel.setValue("2001", "第二季", new Integer(35));
        catmodel.setValue("2001", "第三季", new Integer(40));
        catmodel.setValue("2001", "第四季", new Integer(55));
        catmodel.setValue("2002", "第一季", new Integer(40));
        catmodel.setValue("2002", "第二季", new Integer(60));
        catmodel.setValue("2002", "第三季", new Integer(70));
        catmodel.setValue("2002", "第四季", new Integer(90));
    </zscript>

    <chart id="barchart" title="長條圖  Bar Chart" width="500" height="250" type="bar" threeD="false" fgAlpha="128"
    titleFont="${tfont}" legendFont="${lfont}" xAxisFont="${lbfont}" xAxisTickFont="${lbfont}" model="${catmodel}"/>

Customize Chart

You can customize a chart’s appearance by providing your own ChartEngine. It can save your effort by extending JFreeChartEngine and override its prepareJFreeChart(). Then manipulate the passed JFreeChart to change a chart’s rendering. You also need to find related API in JFreeChart JavaDoc.

<chart engine="foo.MyJfreeChartEngine"/>

Supported Events

• Inherited Supported Events: Imagemap

Supported Children

*NONE
