since 6.0.0

Employment/Purpose

Tablelayout lays out a container as an HTML table in which the columns can be specified, and rowspan and colspan of its child can also be specified to create complex layouts within the table.

Common Use Cases

  • Fixed-column grid layout — set columns to the desired number and add one <tablechildren> per cell; the layout engine wraps cells into rows automatically.
  • Complex spans — nest a <tablechildren> with colspan or rowspan attributes to merge cells, enabling dashboard-style arrangements without nesting extra containers.

Example

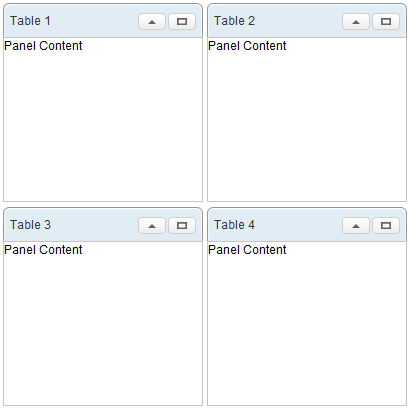

Tablelayout Example

<tablelayout columns="2">
    <tablechildren>
        <panel title="Table 1" border="normal" maximizable="true"
            collapsible="true" width="200px" height="200px">
            <panelchildren>Panel Content</panelchildren>
        </panel>
    </tablechildren>
    <tablechildren>
        <panel title="Table 2" border="normal" maximizable="true"
            collapsible="true" width="200px" height="200px">
            <panelchildren>Panel Content</panelchildren>
        </panel>
    </tablechildren>
    <tablechildren>
        <panel title="Table 3" border="normal" maximizable="true"
            collapsible="true" width="200px" height="200px">
            <panelchildren>Panel Content</panelchildren>
        </panel>
    </tablechildren>
    <tablechildren>
        <panel title="Table 4" border="normal" maximizable="true"
            collapsible="true" width="200px" height="200px">
            <panelchildren>Panel Content</panelchildren>
        </panel>
    </tablechildren>
</tablelayout>

The child of tablechildren can be any component:

Tablelayout Example ZK6

<tablelayout columns="2">
    <tablechildren>
        <label value="Table 1" />
    </tablechildren>
    <tablechildren>
        <button label="Table 2" />
    </tablechildren>
    <tablechildren>
        <textbox value="Table 3" />
    </tablechildren>
    <tablechildren>
        <window border="normal">
            Table 4
        </window>
    </tablechildren>
</tablelayout>

Properties

Columns

Default Value: 1

Sets the number of columns in the table layout. The value must be a positive integer; a value of zero or less throws a WrongValueException. Each <tablechildren> child occupies one cell; when the number of children exceeds columns, a new row is started automatically.

<tablelayout columns="3">
    <tablechildren><label value="Cell 1"/></tablechildren>
    <tablechildren><label value="Cell 2"/></tablechildren>
    <tablechildren><label value="Cell 3"/></tablechildren>
    <tablechildren><label value="Cell 4 — wraps to row 2"/></tablechildren>
</tablelayout>

Supported Events

Supported Children

* Tablechildren
