Employment/Purpose

A label component represents a piece of text. A pure text on the zul will be automatically converted to a label.

Common Use Cases

  • Form field labels — pair a <label> with an input widget (e.g. <textbox>) to provide a visible caption; use sclass or style to match form layout.
  • Dynamic text display — bind value to a view-model property so the label re-renders automatically when the backing data changes (MVVM @bind or @load).
  • Pre-formatted output — set pre="true" to preserve spaces, tabs, and newlines when showing code snippets or structured plain-text content.
  • Truncated display — set maxlength to a positive integer to cap visible characters, useful in tight table cells or list items where overflow must be avoided.

Example

 <window title="Label Demo" >
 <grid>
     <rows>
         <row>Label(normal): <label id="lb1"/></row>
         <row>Label(color): <label id="lb2" style="color:red"/></row>
         <row>Label(font): <label id="lb3" style="font-weight:bold"/></row>
         <row>Label(size): <label id="lb4" style="font-size:14pt"/></row>
         <row>Label(maxlength): <label id="lb5" maxlength="5"/></row>
         <row>Label(pre): <label id="lb6" pre="true"/></row>
         <row>input:
             <textbox id="txt" rows="2"><attribute name="onChange">
                     lb1.value=self.value;
                     lb2.value=self.value;
                     lb3.value=self.value;
                     lb4.value=self.value;
                     lb5.value=self.value;
                     lb6.value=self.value;
             </attribute></textbox>
         </row>
     </rows>
 </grid>
 </window>

You can control how a label is displayed with the style, pre and maxlength Properties.

For example, if you specify pre to be true, all white spaces, such as new line, space and tab, are preserved.

A label component represents a piece of text.

<window border="normal">
    Hello World
</window>

If you want to add an attribute to a label, it has to be written as follows:

<window border="normal">
    <label style="color: red" value="Hello World" />
</window>

Special Character

Since ZUML is XML, not HTML, so it doesn’t accept &nbsp;. However, you can use &#160; instead. For the whole list, please refer th List of XML and HTML character entity references.

Properties

Value

Default Value: ""

Sets the text content displayed by the label. Passing null is treated as an empty string. Because value is the textAs attribute for <label>, you can also supply it as inline text content:

<!-- attribute form -->
<label value="Hello World" />

<!-- inline text form (equivalent) -->
<label>Hello World</label>

Pre

since 5.0.0

When set to true, preserves all white spaces (including new lines, spaces, and tabs) in the label’s value, useful for displaying pre-formatted text such as code snippets or structured plain-text content.

<window border="normal" width="300px">
    <label id="lb1" pre="true"></label>
    <zscript><![CDATA[
        lb1.value = "    this   thing   has   spaces.\nnext line.";
    ]]></zscript>
</window>

Multiline

since 5.0.0

When set to true, preserves new lines and white space at the beginning of each line, but not other interior spaces or tabs. This is similar to pre but less strict.

<window border="normal" width="300px">
    <label id="lb2" multiline="true" />
    <zscript><![CDATA[
        lb2.value = "    this   thing   has   spaces.\nnext line.";
    ]]></zscript>
</window>

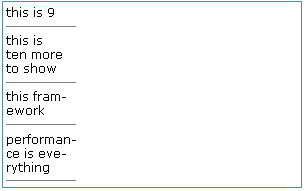

Maxlength

since 5.0.0

Limits the number of characters displayed in the label. When set to a positive integer and both pre and multiline are false, the label shows only the first maxlength characters of its value, truncating the rest. A value of 0 disables truncation.

<window border="normal" width="300px">
    <label id="lb3" maxlength="10" />
    <zscript><![CDATA[
        lb3.value = "    this is more than 10 chars.";
    ]]></zscript>
</window>

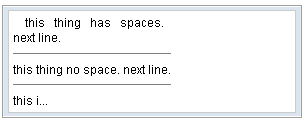

Property Interaction Table

pre multiline maxlength Description
true any any All white spaces are preserved, including new lines, spaces and tabs.
false true any New lines are preserved.
false false positive The label only show its value up to the length of “maxlength”.
false false 0 The label is displayed regularly.

Supported Events

Supported Children

*NONE
