Manipulating Chart Model

Manipulating Chart Model

Models are the perfect way for developers to interact with the charts as they shield developers from complexities that they need not know or interact with. In addition to this ZK model supports many design patterns including MVC and MVVM, which are both fully supported patterns.

ZK provides chart models to handle data in the chart. Manipulating chart model with charts is the same as other ZK components handling their supporting models. We’ve used MVC approach to create the chart in the previous section - Create your first ZK Charts. In this section, we will create another example of manipulating the chart model in the MVVM approach.

We get started by creating an org.zkoss.chart.model.XYModel and put the data we want to handle:

ChartData.java

public class ChartData {

    static public XYModel getXYModel() {
        // Use the predefined implementation DefaultXYModel to create a model.
        XYModel model = new DefaultXYModel();

        model.addValue("2001", 20, 120);
        model.addValue("2001", 40, 135);
        model.addValue("2001", 60, 140);
        model.addValue("2001", 80, 160);

        model.addValue("2002", 30, 120);
        model.addValue("2002", 50, 135);
        model.addValue("2002", 70, 140);
        model.addValue("2002", 90, 160);

        return model;
    }
}

Declare a POJO VM as well as the property’s getter method.

ChartVM.java

public class ChartVM {

    public XYModel getModel() {
        return ChartData.getXYModel();
    }
}

Reference the ViewModel in ZUL:

chart.zul

<window apply="org.zkoss.bind.BindComposer" viewModel="@id('vm') @init('ChartVM')">

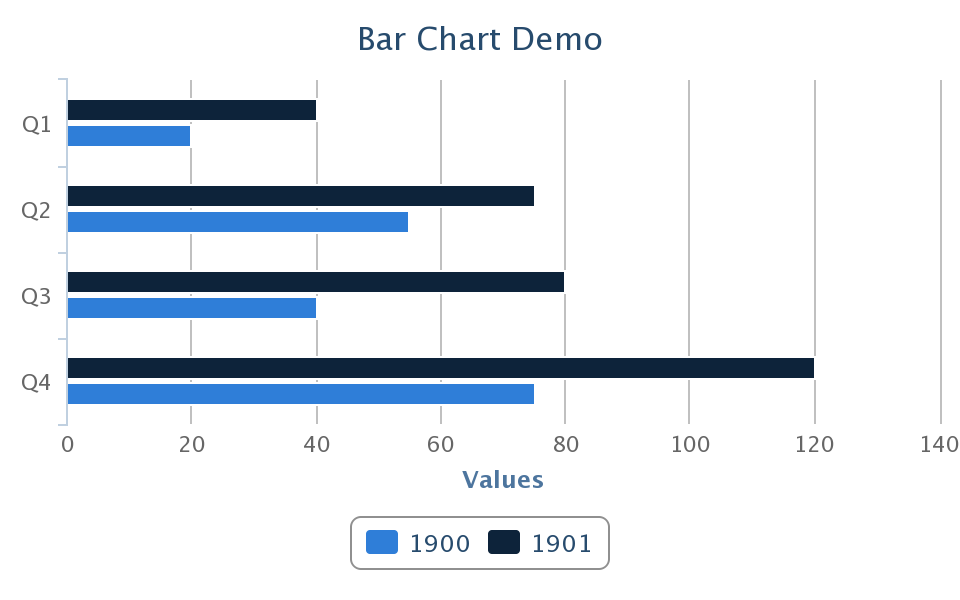

    <charts type="bar" model="@bind(vm.model)" />
</window>

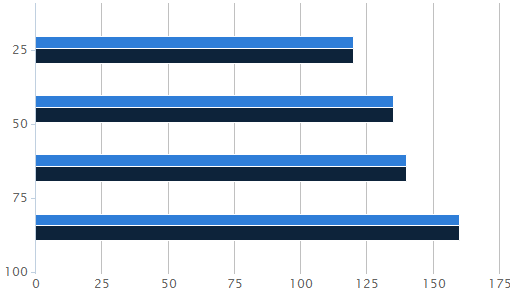

Enjoy the graphical presentation of data!

Supported Model

Type	Model
line	CategoryModel or XYModel
spline	CategoryModel or XYModel
area	CategoryModel or XYModel
areaspline	CategoryModel or XYModel
arearange	XYZModel
areasplinerange	XYZModel
bar	CategoryModel or XYModel
column	CategoryModel or XYModel
columnrange	XYModel
pie	PieModel
scatter	XYModel
bubble	XYModel or XYZModel

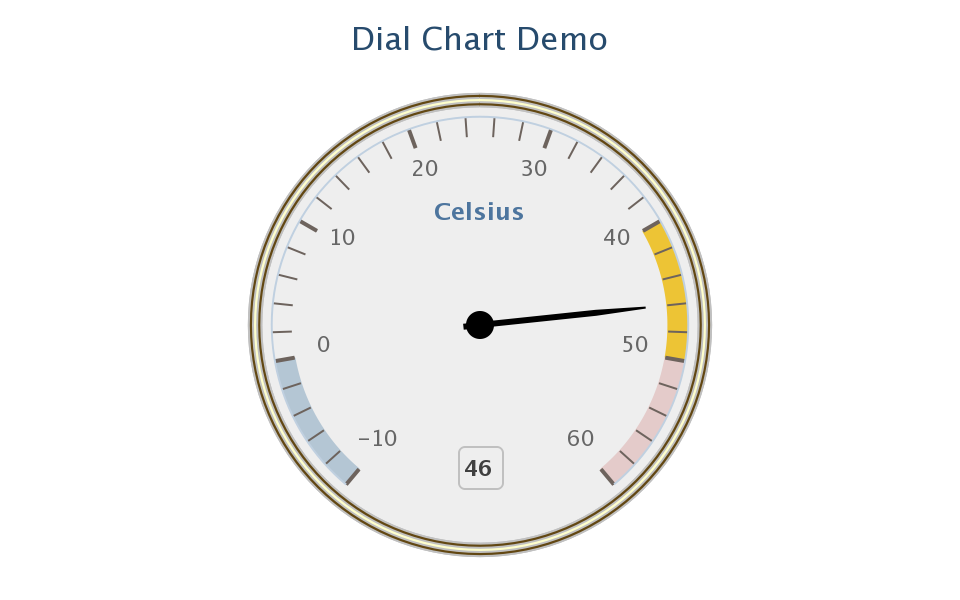

gauge	DialModel
polar	CategoryModel or XYModel
errorbar	XYModel

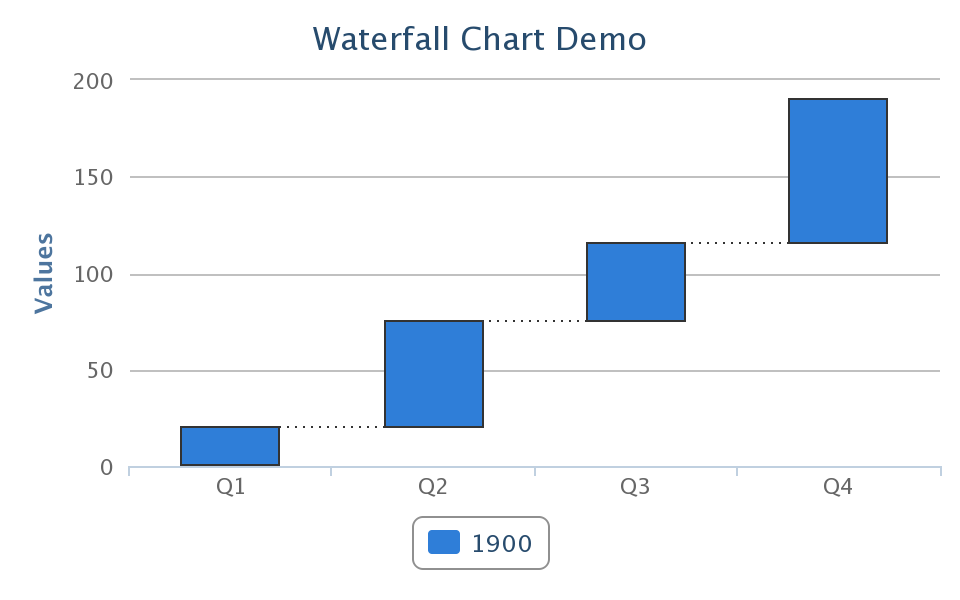

waterfall	CategoryModel or XYModel
funnel	SingleValueCategoryModel
errorbox	XYModel

Note: Since ZK 7.0.1, org.zkoss.zul.ChartModel also supports ZK Charts as well, however, it is recommended to use the new ZK org.zkoss.chart.model.ChartsModel instead.

Examples

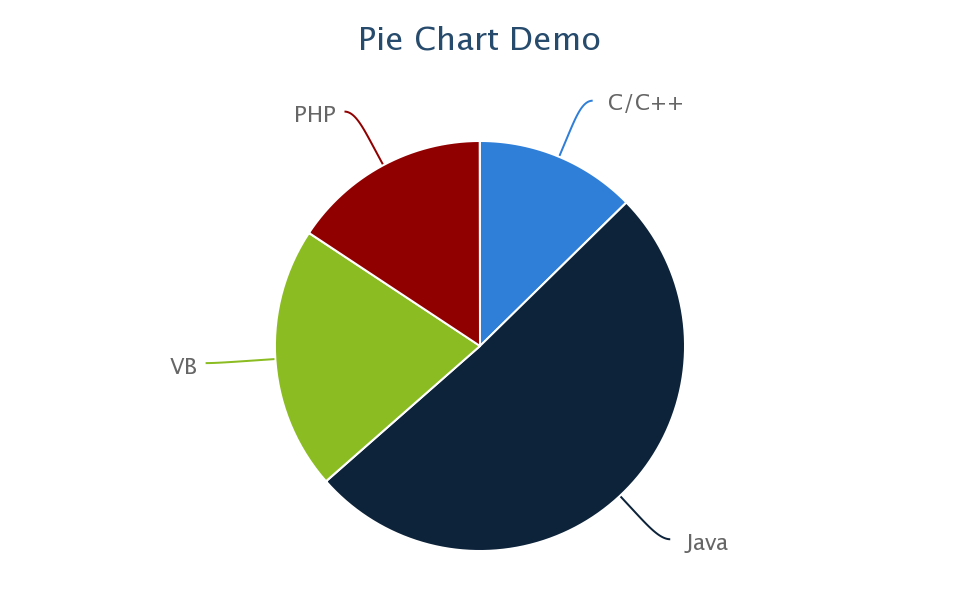

Pie Chart

<div apply="demo.PieChartComposer">
    <charts id="chart" type="pie" width="480"
        height="300" title="Pie Chart Demo"/>
</div>

public class PieChartComposer extends SelectorComposer<Div> {
    @Wire
    Charts chart;

    public void doAfterCompose(Div comp) throws Exception {
        super.doAfterCompose(comp);

        PieModel model = new DefaultPieModel();
        model.setValue("C/C++", 12.5);
        model.setValue("Java", 50.2);
        model.setValue("VB", 20.5);
        model.setValue("PHP", 15.5);

        chart.setModel(model);
    }
}

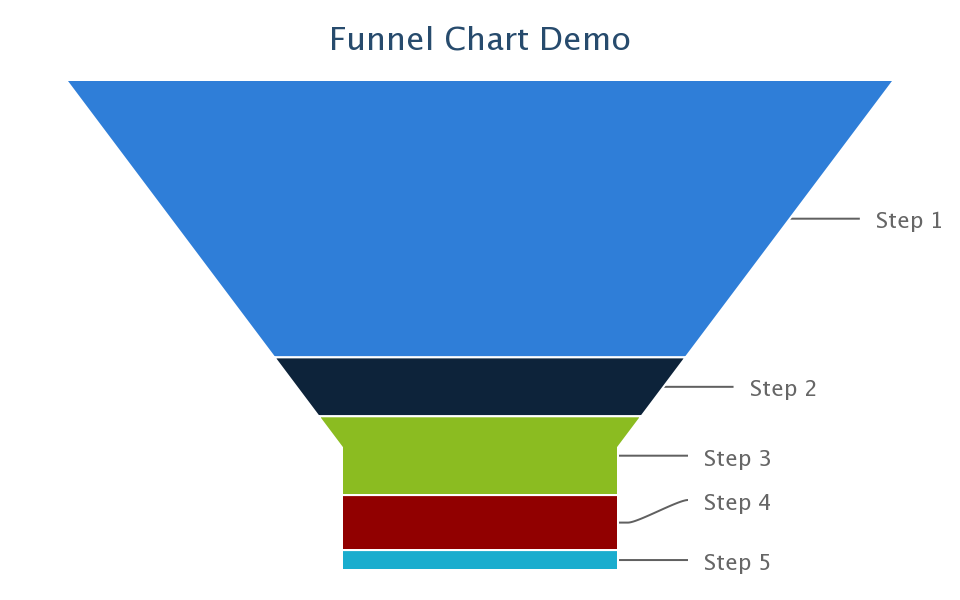

Funnel Chart

<div apply="demo.FunnelChartComposer">
    <charts id="chart" type="funnel" width="480" height="300"
        title="Funnel Chart Demo"/>
</div>

public class FunnelChartComposer extends SelectorComposer<Div> {
    @Wire
    Charts chart;

    public void doAfterCompose(Div comp) throws Exception {
        super.doAfterCompose(comp);

        SingleValueCategoryModel model = new DefaultSingleValueCategoryModel();
        model.setValue("Step 1", 142.2);
        model.setValue("Step 2", 30.2);
        model.setValue("Step 3", 40.4);
        model.setValue("Step 4", 28.2);
        model.setValue("Step 5", 10.2);

        chart.setModel(model);

    }
}

Line Chart

Basic Line Chart

<div apply="demo.LineChartComposer">
    <charts id="chart" type="line" width="480"
        height="300" title="Line Chart Demo"/>
</div>

public class LineChartComposer extends SelectorComposer<Div> {
    @Wire
    Charts chart;

    public void doAfterCompose(Div comp) throws Exception {
        super.doAfterCompose(comp);

        CategoryModel model = new DefaultCategoryModel();
        model.setValue("1900", "Q1", 20);
        model.setValue("1900", "Q2", 55);
        model.setValue("1900", "Q3", 40);
        model.setValue("1900", "Q4", 75);
        model.setValue("1901", "Q1", 40);
        model.setValue("1901", "Q2", 75);
        model.setValue("1901", "Q3", 80);
        model.setValue("1901", "Q4", 120);

        chart.setModel(model);
    }
}

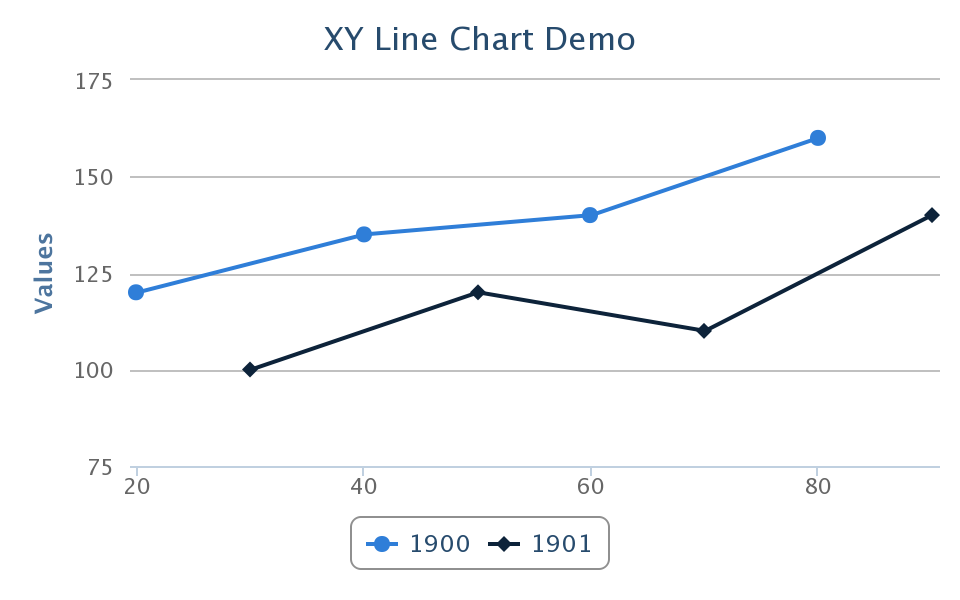

XY Line Chart

<div apply="demo.XYLineChartComposer">
    <charts id="chart" type="line" width="480"
        height="300" title="XY Line Chart Demo"/>
</div>

public class XYLineChartComposer extends SelectorComposer<Div> {
    @Wire
    Charts chart;

    public void doAfterCompose(Div comp) throws Exception {
        super.doAfterCompose(comp);

        XYModel model = new DefaultXYModel();
        model.addValue("1900", 20, 120);
        model.addValue("1900", 40, 135);
        model.addValue("1900", 60, 140);
        model.addValue("1900", 80, 160);
        model.addValue("1901", 30, 100);
        model.addValue("1901", 50, 120);
        model.addValue("1901", 70, 110);
        model.addValue("1901", 90, 140);

        chart.setModel(model);
    }
}

Spline Chart

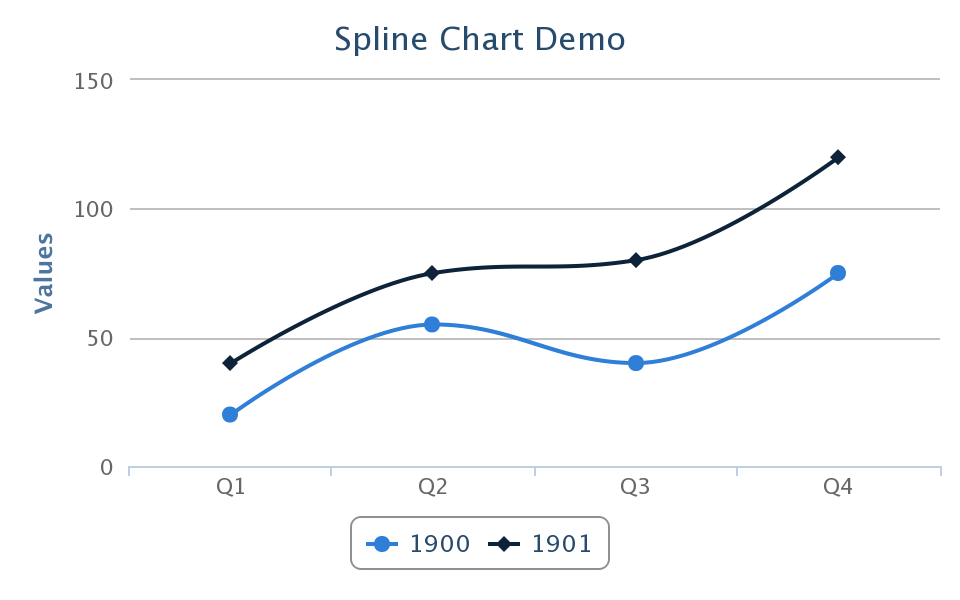

Basic Spline Chart

<div apply="demo.SplineChartComposer">
    <charts id="chart" type="spline" width="480"
        height="300" title="Spline Chart Demo"/>
</div>

public class SplineChartComposer extends SelectorComposer<Div> {
    @Wire
    Charts chart;

    public void doAfterCompose(Div comp) throws Exception {
        super.doAfterCompose(comp);

        CategoryModel model = new DefaultCategoryModel();
        model.setValue("1900", "Q1", 20);
        model.setValue("1900", "Q2", 55);
        model.setValue("1900", "Q3", 40);
        model.setValue("1900", "Q4", 75);
        model.setValue("1901", "Q1", 40);
        model.setValue("1901", "Q2", 75);
        model.setValue("1901", "Q3", 80);
        model.setValue("1901", "Q4", 120);

        chart.setModel(model);
    }
}

XY Spline Chart

<div apply="demo.XYSplineChartComposer">
    <charts id="chart" type="spline" width="480"
        height="300" title="XY Spline Chart Demo"/>
</div>

public class XYSplineChartComposer extends SelectorComposer<Div> {
    @Wire
    Charts chart;

    public void doAfterCompose(Div comp) throws Exception {
        super.doAfterCompose(comp);

        XYModel model = new DefaultXYModel();
        model.addValue("1900", 20, 120);
        model.addValue("1900", 40, 135);
        model.addValue("1900", 60, 140);
        model.addValue("1900", 80, 160);
        model.addValue("1901", 30, 100);
        model.addValue("1901", 50, 120);
        model.addValue("1901", 70, 110);
        model.addValue("1901", 90, 140);

        chart.setModel(model);
    }
}

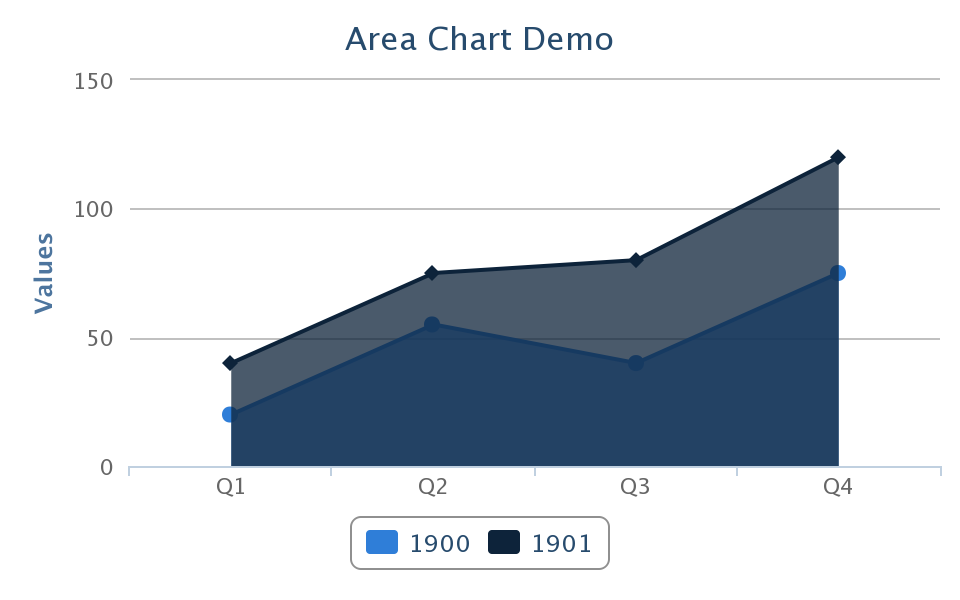

Area Chart

Basic Area Chart

<div apply="demo.AreaChartComposer">
    <charts id="chart" type="area" width="480"
        height="300" title="Area Chart Demo"/>
</div>

public class AreaChartComposer extends SelectorComposer<Div> {
    @Wire
    Charts chart;

    public void doAfterCompose(Div comp) throws Exception {
        super.doAfterCompose(comp);

        CategoryModel model = new DefaultCategoryModel();
        model.setValue("1900", "Q1", 20);
        model.setValue("1900", "Q2", 55);
        model.setValue("1900", "Q3", 40);
        model.setValue("1900", "Q4", 75);
        model.setValue("1901", "Q1", 40);
        model.setValue("1901", "Q2", 75);
        model.setValue("1901", "Q3", 80);
        model.setValue("1901", "Q4", 120);

        chart.setModel(model);
    }
}

XY Area Chart

<div apply="demo.XYAreaChartComposer">
    <charts id="chart" type="area" width="480"
        height="300" title="XY Area Chart Demo"/>
</div>

public class XYAreaChartComposer extends SelectorComposer<Div> {
    @Wire
    Charts chart;

    public void doAfterCompose(Div comp) throws Exception {
        super.doAfterCompose(comp);

        XYModel model = new DefaultXYModel();
        model.addValue("1900", 20, 120);
        model.addValue("1900", 40, 135);
        model.addValue("1900", 60, 140);
        model.addValue("1900", 80, 160);
        model.addValue("1901", 30, 100);
        model.addValue("1901", 50, 120);
        model.addValue("1901", 70, 110);
        model.addValue("1901", 90, 140);

        chart.setModel(model);
    }
}

Stacked Area Chart

<div apply="demo.StackedAreaChartComposer">
    <charts id="chart" type="area" width="480"
        height="300" title="Stacked Area Chart Demo"/>
</div>

public class StackedAreaChartComposer extends SelectorComposer<Div> {
    @Wire
    Charts chart;

    public void doAfterCompose(Div comp) throws Exception {
        super.doAfterCompose(comp);

        CategoryModel model = new DefaultCategoryModel();
        model.setValue("1900", "Q1", 20);
        model.setValue("1900", "Q2", 55);
        model.setValue("1900", "Q3", 40);
        model.setValue("1900", "Q4", 75);
        model.setValue("1901", "Q1", 40);
        model.setValue("1901", "Q2", 75);
        model.setValue("1901", "Q3", 80);
        model.setValue("1901", "Q4", 120);

        chart.setModel(model);

        chart.getPlotOptions().getArea().setStacking("normal");
    }
}

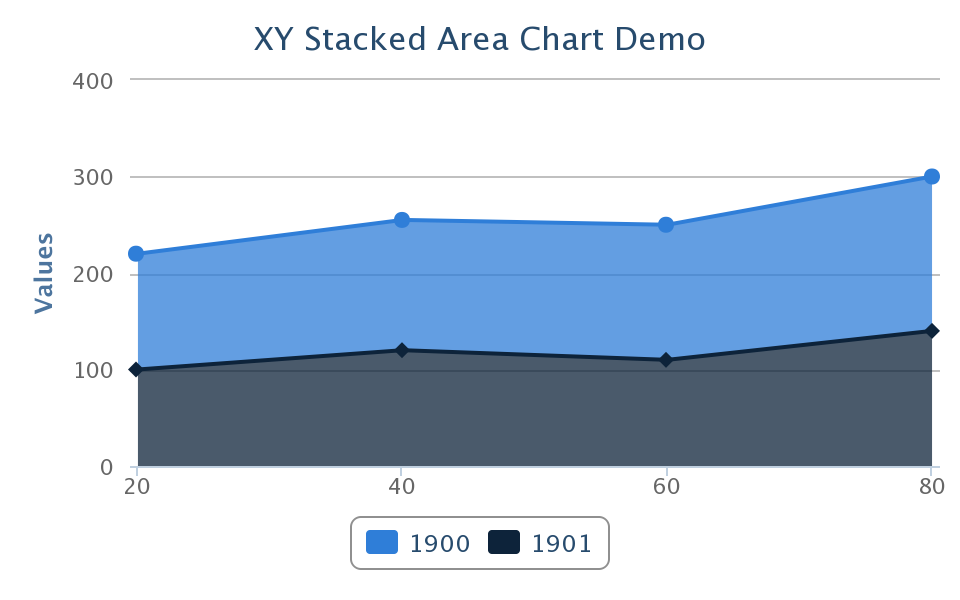

XY Stacked Area Chart

<div apply="demo.XYStackedAreaChartComposer">
    <charts id="chart" type="area" width="480"
        height="300" title="XY Stacked Area Chart Demo"/>
</div>

public class XYStackedAreaChartComposer extends SelectorComposer<Div> {
    @Wire
    Charts chart;

    public void doAfterCompose(Div comp) throws Exception {
        super.doAfterCompose(comp);

        XYModel model = new DefaultXYModel();
        model.addValue("1900", 20, 120);
        model.addValue("1900", 40, 135);
        model.addValue("1900", 60, 140);
        model.addValue("1900", 80, 160);
        model.addValue("1901", 20, 100);
        model.addValue("1901", 40, 120);
        model.addValue("1901", 60, 110);
        model.addValue("1901", 80, 140);

        chart.setModel(model);

        chart.getPlotOptions().getArea().setStacking("normal");
    }
}

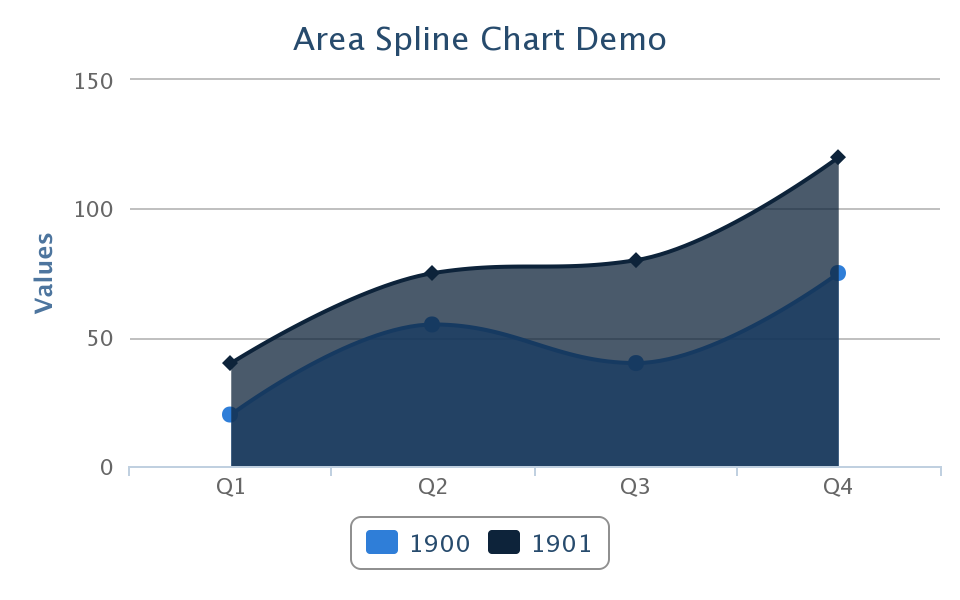

Area Spline Chart

Basic Area Spline Chart

<div apply="demo.AreaSplineChartComposer">
    <charts id="chart" type="areaspline" width="480"
        height="300" title="Area Spline Chart Demo"/>
</div>

public class AreaSplineChartComposer extends SelectorComposer<Div> {
    @Wire
    Charts chart;

    public void doAfterCompose(Div comp) throws Exception {
        super.doAfterCompose(comp);

        CategoryModel model = new DefaultCategoryModel();
        model.setValue("1900", "Q1", 20);
        model.setValue("1900", "Q2", 55);
        model.setValue("1900", "Q3", 40);
        model.setValue("1900", "Q4", 75);
        model.setValue("1901", "Q1", 40);
        model.setValue("1901", "Q2", 75);
        model.setValue("1901", "Q3", 80);
        model.setValue("1901", "Q4", 120);

        chart.setModel(model);
    }
}

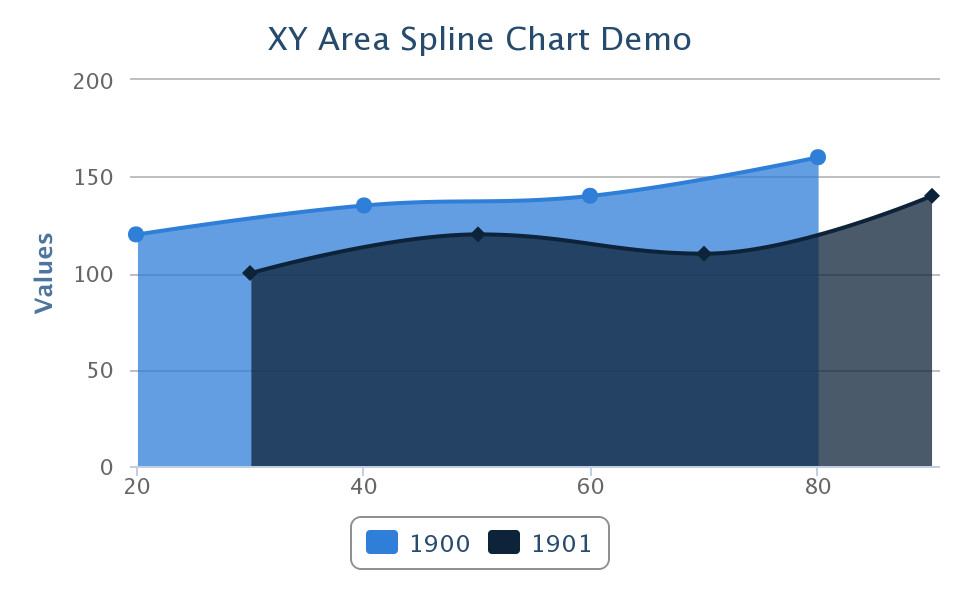

XY Area Spline Chart

<div apply="demo.XYAreaSplineChartComposer">
    <charts id="chart" type="areaspline" width="480"
        height="300" title="XY Area Spline Chart Demo"/>
</div>

public class XYAreaSplineChartComposer extends SelectorComposer<Div> {
    @Wire
    Charts chart;

    public void doAfterCompose(Div comp) throws Exception {
        super.doAfterCompose(comp);

        XYModel model = new DefaultXYModel();
        model.addValue("1900", 20, 120);
        model.addValue("1900", 40, 135);
        model.addValue("1900", 60, 140);
        model.addValue("1900", 80, 160);
        model.addValue("1901", 30, 100);
        model.addValue("1901", 50, 120);
        model.addValue("1901", 70, 110);
        model.addValue("1901", 90, 140);

        chart.setModel(model);
    }
}

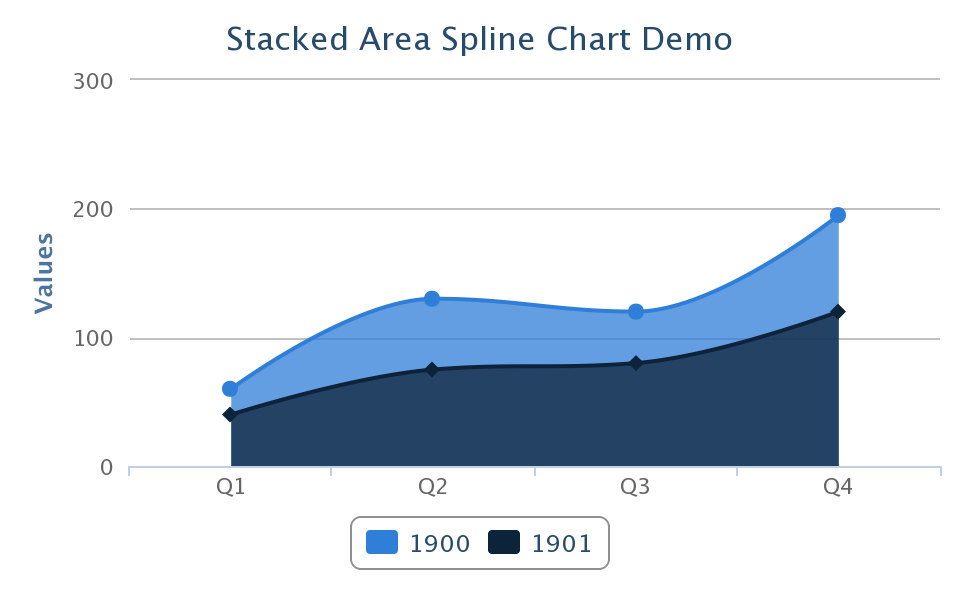

Stacked Area Spline Chart

<div apply="demo.StackedAreaSplineChartComposer">
    <charts id="chart" type="areaspline" width="480"
        height="300" title="Stacked Area Spline Chart Demo"/>
</div>

public class StackedAreaSplineChartComposer extends SelectorComposer<Div> {
    @Wire
    Charts chart;

    public void doAfterCompose(Div comp) throws Exception {
        super.doAfterCompose(comp);

        CategoryModel model = new DefaultCategoryModel();
        model.setValue("1900", "Q1", 20);
        model.setValue("1900", "Q2", 55);
        model.setValue("1900", "Q3", 40);
        model.setValue("1900", "Q4", 75);
        model.setValue("1901", "Q1", 40);
        model.setValue("1901", "Q2", 75);
        model.setValue("1901", "Q3", 80);
        model.setValue("1901", "Q4", 120);

        chart.setModel(model);

        chart.getPlotOptions().getArea().setStacking("normal");
    }
}

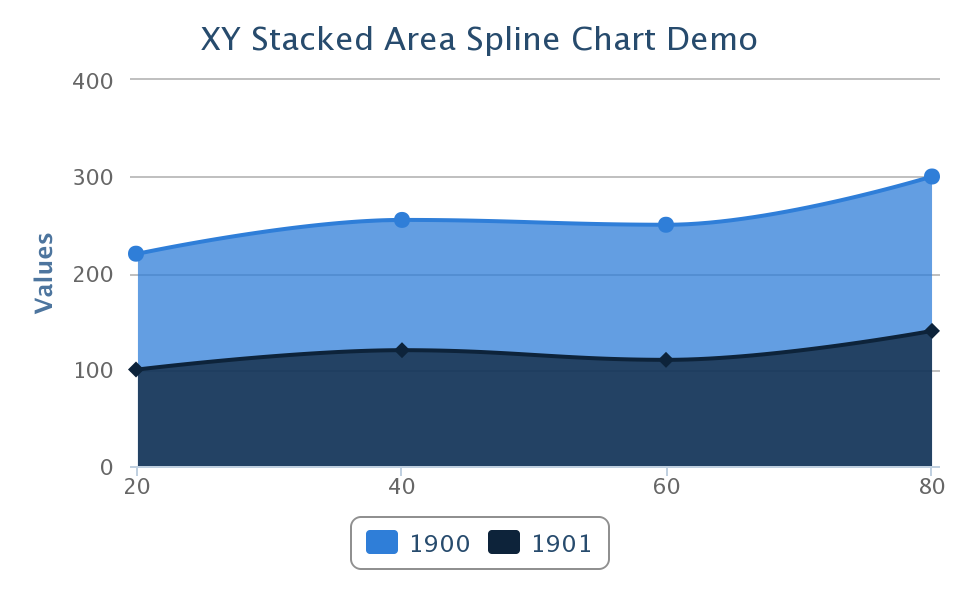

XY Stacked Area Spline Chart

<div apply="demo.XYStackedAreaSplineChartComposer">
    <charts id="chart" type="areaspline" width="480"
        height="300" title="XY Stacked Area Spline Chart Demo"/>
</div>

public class XYStackedAreaSplineChartComposer extends SelectorComposer<Div> {
    @Wire
    Charts chart;

    public void doAfterCompose(Div comp) throws Exception {
        super.doAfterCompose(comp);

        XYModel model = new DefaultXYModel();
        model.addValue("1900", 20, 120);
        model.addValue("1900", 40, 135);
        model.addValue("1900", 60, 140);
        model.addValue("1900", 80, 160);
        model.addValue("1901", 20, 100);
        model.addValue("1901", 40, 120);
        model.addValue("1901", 60, 110);
        model.addValue("1901", 80, 140);

        chart.setModel(model);

        chart.getPlotOptions().getAreaSpline().setStacking("normal");
    }
}

Bar Chart

Basic Bar Chart

<div apply="demo.BarChartComposer">
    <charts id="chart" type="bar" width="480"
        height="300" title="Bar Chart Demo"/>
</div>

public class BarChartComposer extends SelectorComposer<Div> {
    @Wire
    Charts chart;

    public void doAfterCompose(Div comp) throws Exception {
        super.doAfterCompose(comp);

        CategoryModel model = new DefaultCategoryModel();
        model.setValue("1900", "Q1", 20);
        model.setValue("1900", "Q2", 55);
        model.setValue("1900", "Q3", 40);
        model.setValue("1900", "Q4", 75);
        model.setValue("1901", "Q1", 40);
        model.setValue("1901", "Q2", 75);
        model.setValue("1901", "Q3", 80);
        model.setValue("1901", "Q4", 120);

        chart.setModel(model);
    }
}

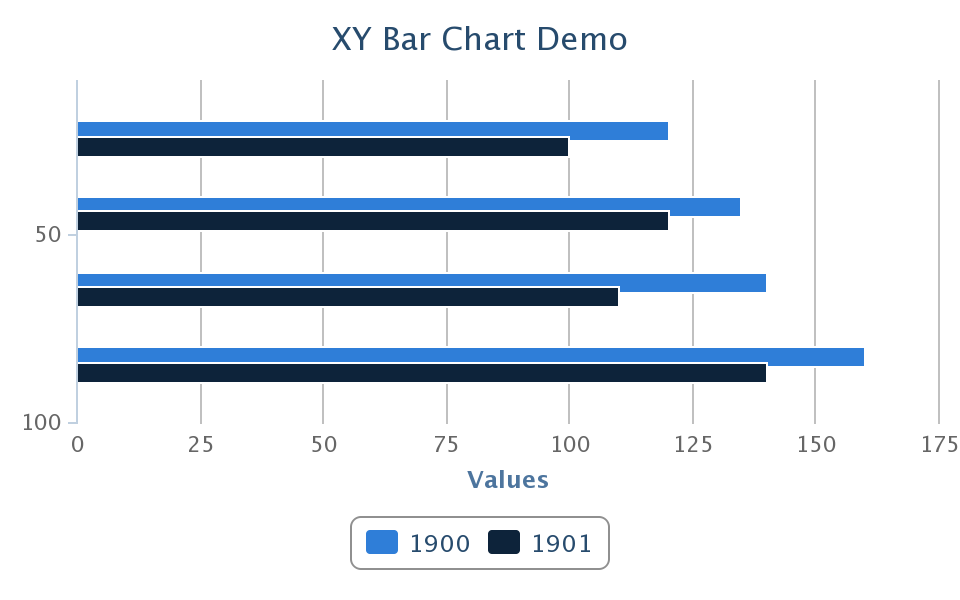

XY Bar Chart

<div apply="demo.XYBarChartComposer">
    <charts id="chart" type="bar" width="480"
        height="300" title="XY Bar Chart Demo"/>
</div>

public class XYBarChartComposer extends SelectorComposer<Div> {
    @Wire
    Charts chart;

    public void doAfterCompose(Div comp) throws Exception {
        super.doAfterCompose(comp);

        XYModel model = new DefaultXYModel();
        model.addValue("1900", 20, 120);
        model.addValue("1900", 40, 135);
        model.addValue("1900", 60, 140);
        model.addValue("1900", 80, 160);
        model.addValue("1901", 30, 100);
        model.addValue("1901", 50, 120);
        model.addValue("1901", 70, 110);
        model.addValue("1901", 90, 140);

        chart.setModel(model);
    }
}

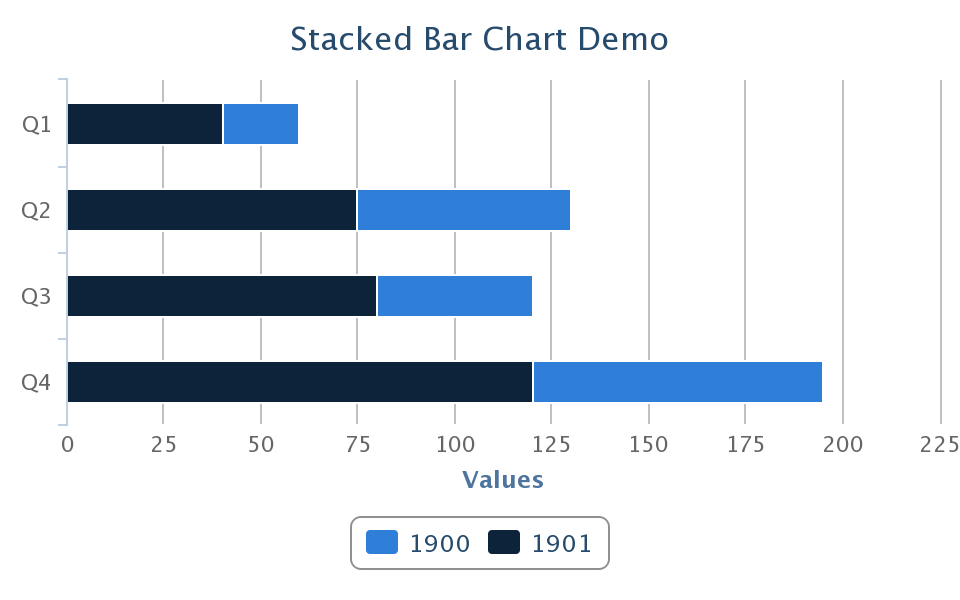

Stacked Bar Chart

<div apply="demo.StackedBarChartComposer">
    <charts id="chart" type="bar" width="480"
        height="300" title="Stacked Bar Chart Demo"/>
</div>

public class StackedBarChartComposer extends SelectorComposer<Div> {
    @Wire
    Charts chart;

    public void doAfterCompose(Div comp) throws Exception {
        super.doAfterCompose(comp);

        CategoryModel model = new DefaultCategoryModel();
        model.setValue("1900", "Q1", 20);
        model.setValue("1900", "Q2", 55);
        model.setValue("1900", "Q3", 40);
        model.setValue("1900", "Q4", 75);
        model.setValue("1901", "Q1", 40);
        model.setValue("1901", "Q2", 75);
        model.setValue("1901", "Q3", 80);
        model.setValue("1901", "Q4", 120);

        chart.setModel(model);

        chart.getPlotOptions().getBar().setStacking("normal");
    }
}

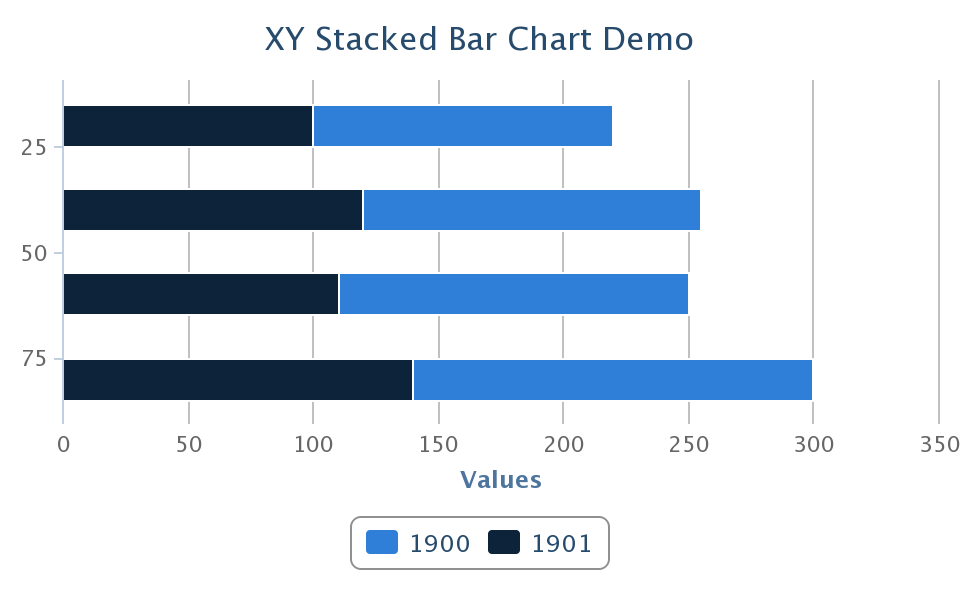

XY Stacked Bar Chart

<div apply="demo.XYStackedBarChartComposer">
    <charts id="chart" type="bar" width="480"
        height="300" title="XY Stacked Bar Chart Demo"/>
</div>

public class XYStackedBarChartComposer extends SelectorComposer<Div> {
    @Wire
    Charts chart;

    public void doAfterCompose(Div comp) throws Exception {
        super.doAfterCompose(comp);

        XYModel model = new DefaultXYModel();
        model.addValue("1900", 20, 120);
        model.addValue("1900", 40, 135);
        model.addValue("1900", 60, 140);
        model.addValue("1900", 80, 160);
        model.addValue("1901", 20, 100);
        model.addValue("1901", 40, 120);
        model.addValue("1901", 60, 110);
        model.addValue("1901", 80, 140);

        chart.setModel(model);

        chart.getPlotOptions().getBar().setStacking("normal");
    }
}

Column Chart

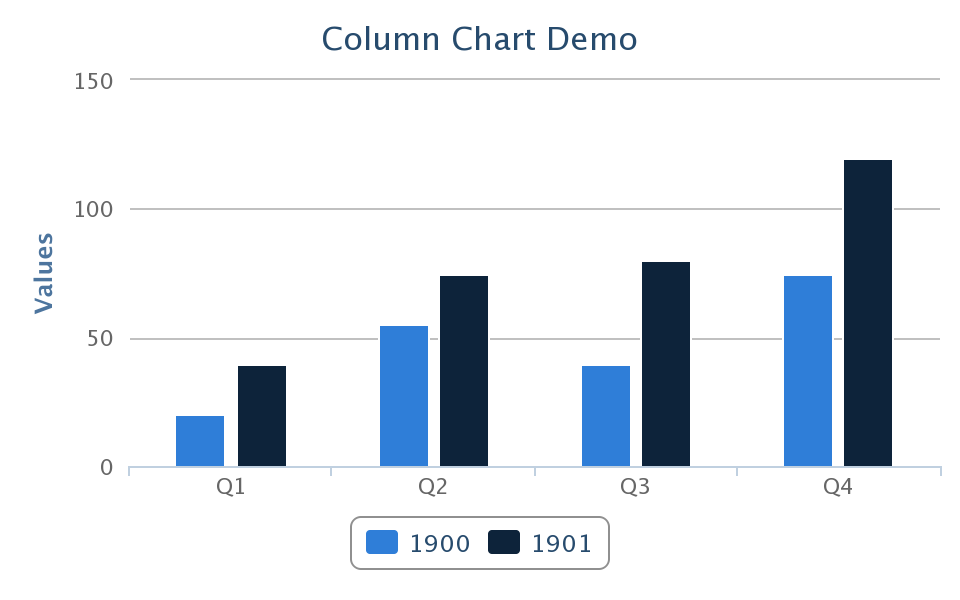

Basic Column Chart

<div apply="demo.ColumnChartComposer">
    <charts id="chart" type="column" width="480"
        height="300" title="Column Chart Demo"/>
</div>

public class ColumnChartComposer extends SelectorComposer<Div> {
    @Wire
    Charts chart;

    public void doAfterCompose(Div comp) throws Exception {
        super.doAfterCompose(comp);

        CategoryModel model = new DefaultCategoryModel();
        model.setValue("1900", "Q1", 20);
        model.setValue("1900", "Q2", 55);
        model.setValue("1900", "Q3", 40);
        model.setValue("1900", "Q4", 75);
        model.setValue("1901", "Q1", 40);
        model.setValue("1901", "Q2", 75);
        model.setValue("1901", "Q3", 80);
        model.setValue("1901", "Q4", 120);

        chart.setModel(model);
    }
}

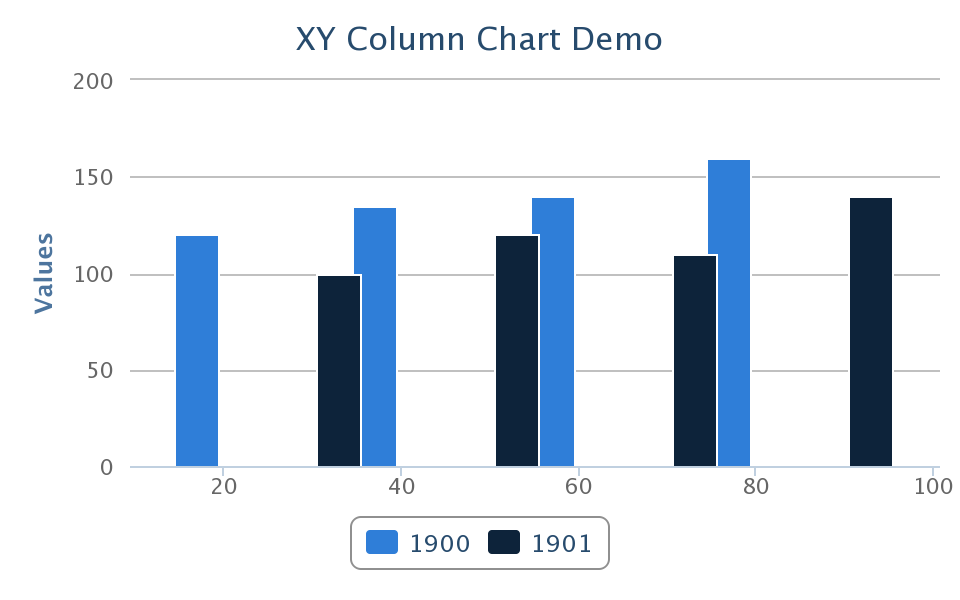

XY Column Chart

<div apply="demo.XYColumnChartComposer">
    <charts id="chart" type="column" width="480"
        height="300" title="XY Column Chart Demo"/>
</div>

public class XYColumnChartComposer extends SelectorComposer<Div> {
    @Wire
    Charts chart;

    public void doAfterCompose(Div comp) throws Exception {
        super.doAfterCompose(comp);

        XYModel model = new DefaultXYModel();
        model.addValue("1900", 20, 120);
        model.addValue("1900", 40, 135);
        model.addValue("1900", 60, 140);
        model.addValue("1900", 80, 160);
        model.addValue("1901", 30, 100);
        model.addValue("1901", 50, 120);
        model.addValue("1901", 70, 110);
        model.addValue("1901", 90, 140);

        chart.setModel(model);
    }
}

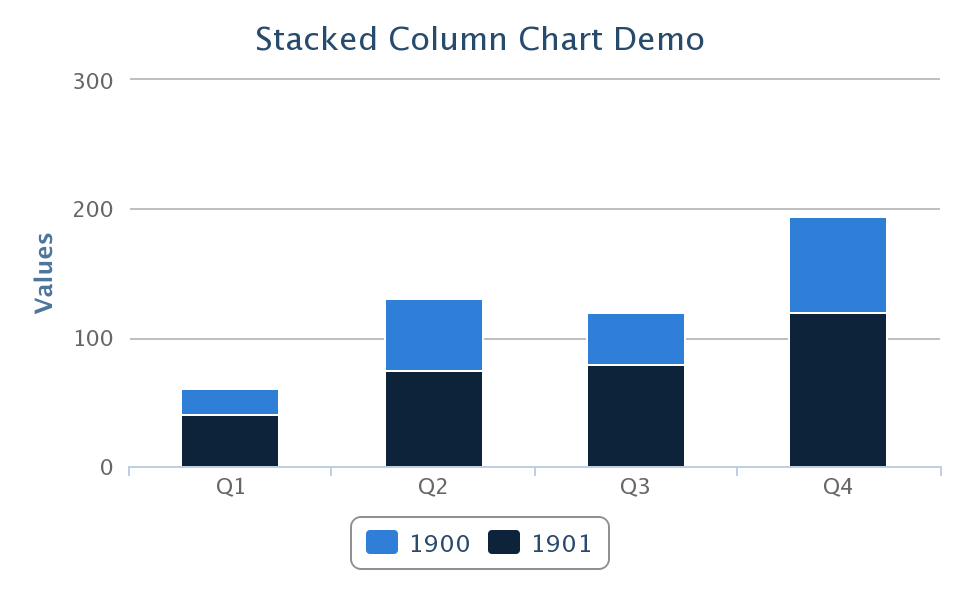

Stacked Column Chart

<div apply="demo.StackedColumnChartComposer">
    <charts id="chart" type="column" width="480"
        height="300" title="Stacked Column Chart Demo"/>
</div>

public class StackedColumnChartComposer extends SelectorComposer<Div> {
    @Wire
    Charts chart;

    public void doAfterCompose(Div comp) throws Exception {
        super.doAfterCompose(comp);

        CategoryModel model = new DefaultCategoryModel();
        model.setValue("1900", "Q1", 20);
        model.setValue("1900", "Q2", 55);
        model.setValue("1900", "Q3", 40);
        model.setValue("1900", "Q4", 75);
        model.setValue("1901", "Q1", 40);
        model.setValue("1901", "Q2", 75);
        model.setValue("1901", "Q3", 80);
        model.setValue("1901", "Q4", 120);

        chart.setModel(model);

        chart.getPlotOptions().getColumn().setStacking("normal");
    }
}

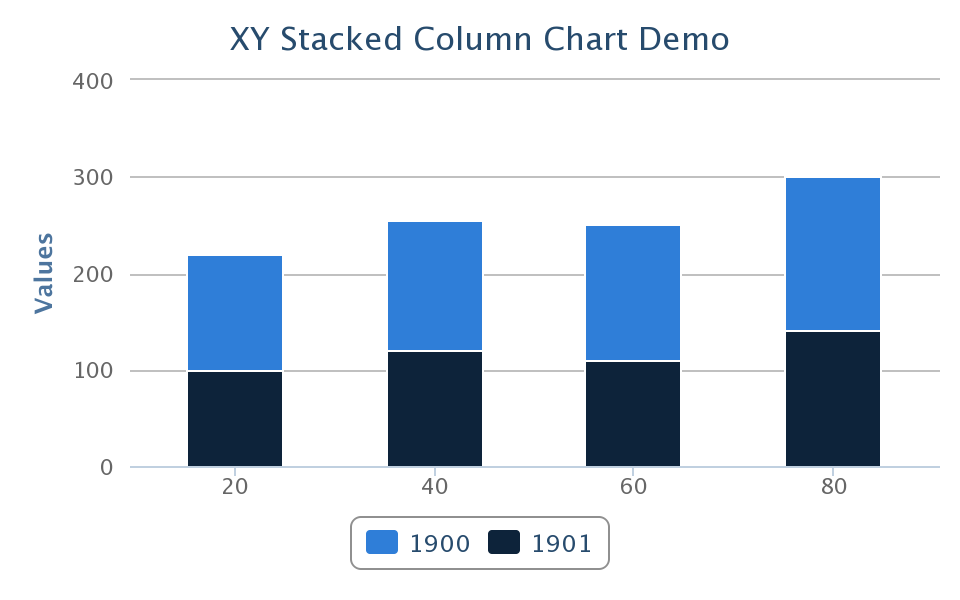

XY Stacked Column Chart

<div apply="demo.XYStackedColumnChartComposer">
    <charts id="chart" type="column" width="480"
        height="300" title="XY Stacked Column Chart Demo"/>
</div>

public class XYStackedColumnChartComposer extends SelectorComposer<Div> {
    @Wire
    Charts chart;

    public void doAfterCompose(Div comp) throws Exception {
        super.doAfterCompose(comp);

        XYModel model = new DefaultXYModel();
        model.addValue("1900", 20, 120);
        model.addValue("1900", 40, 135);
        model.addValue("1900", 60, 140);
        model.addValue("1900", 80, 160);
        model.addValue("1901", 20, 100);
        model.addValue("1901", 40, 120);
        model.addValue("1901", 60, 110);
        model.addValue("1901", 80, 140);

        chart.setModel(model);

        chart.getPlotOptions().getColumn().setStacking("normal");
    }
}

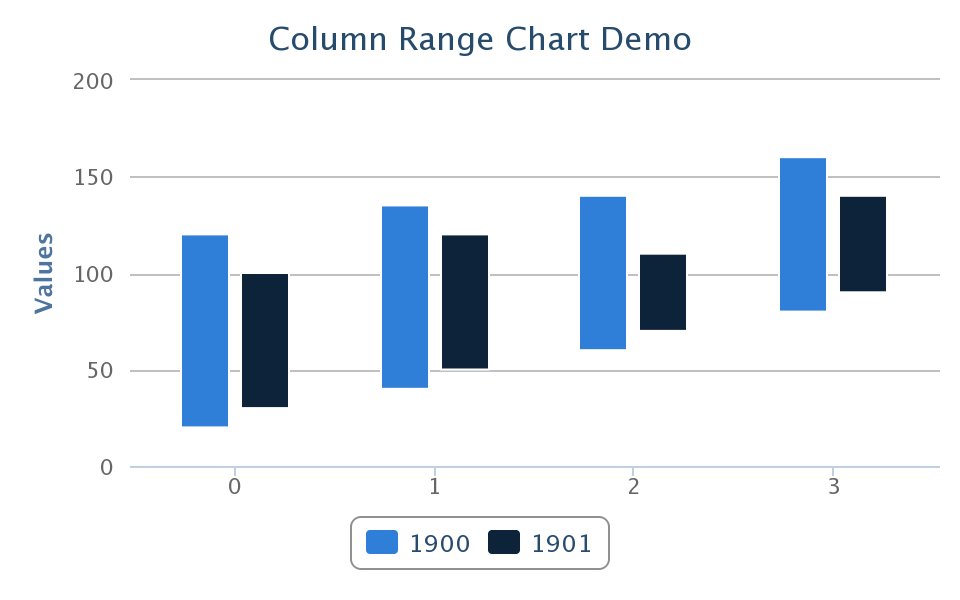

Column Range Chart

<div apply="demo.ColumnRangeChartComposer">
    <charts id="chart" type="columnrange" width="480"
        height="300" title="Column Range Chart Demo"/>
</div>

public class ColumnRangeChartComposer extends SelectorComposer<Div> {
    @Wire
    Charts chart;

    public void doAfterCompose(Div comp) throws Exception {
        super.doAfterCompose(comp);

        XYModel model = new DefaultXYModel();
        model.addValue("1900", 20, 120);
        model.addValue("1900", 40, 135);
        model.addValue("1900", 60, 140);
        model.addValue("1900", 80, 160);
        model.addValue("1901", 30, 100);
        model.addValue("1901", 50, 120);
        model.addValue("1901", 70, 110);
        model.addValue("1901", 90, 140);

        chart.setModel(model);
    }
}

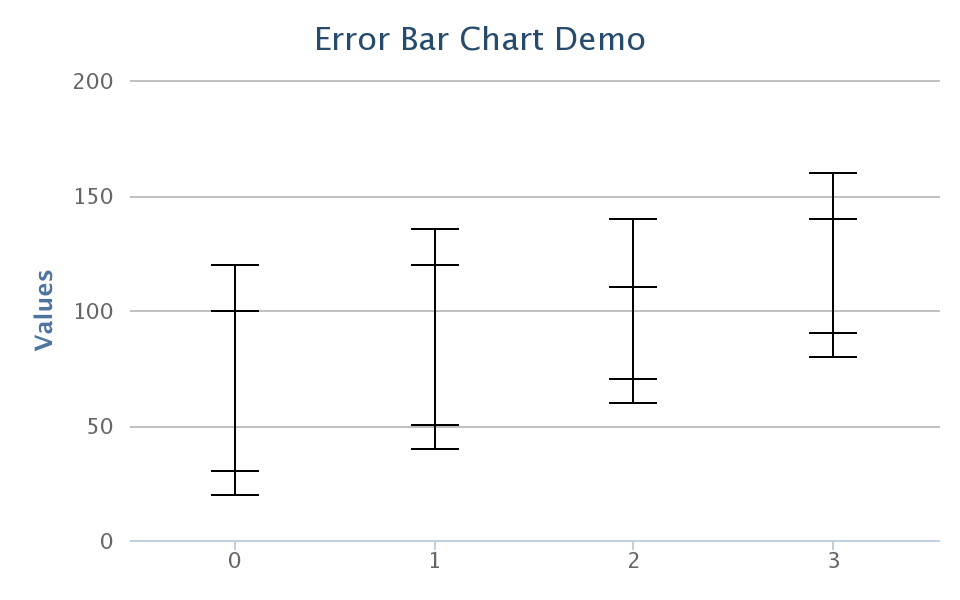

Error Bar Chart

<div apply="demo.ErrorBarChartComposer">
    <charts id="chart" type="errorbar" width="480"
        height="300" title="Error Bar Chart Demo"/>
</div>

public class ErrorBarChartComposer extends SelectorComposer<Div> {
    @Wire
    Charts chart;

    public void doAfterCompose(Div comp) throws Exception {
        super.doAfterCompose(comp);

        XYModel model = new DefaultXYModel();
        model.addValue("1900", 20, 120);
        model.addValue("1900", 40, 135);
        model.addValue("1900", 60, 140);
        model.addValue("1900", 80, 160);
        model.addValue("1901", 30, 100);
        model.addValue("1901", 50, 120);
        model.addValue("1901", 70, 110);
        model.addValue("1901", 90, 140);

        chart.setModel(model);
    }
}

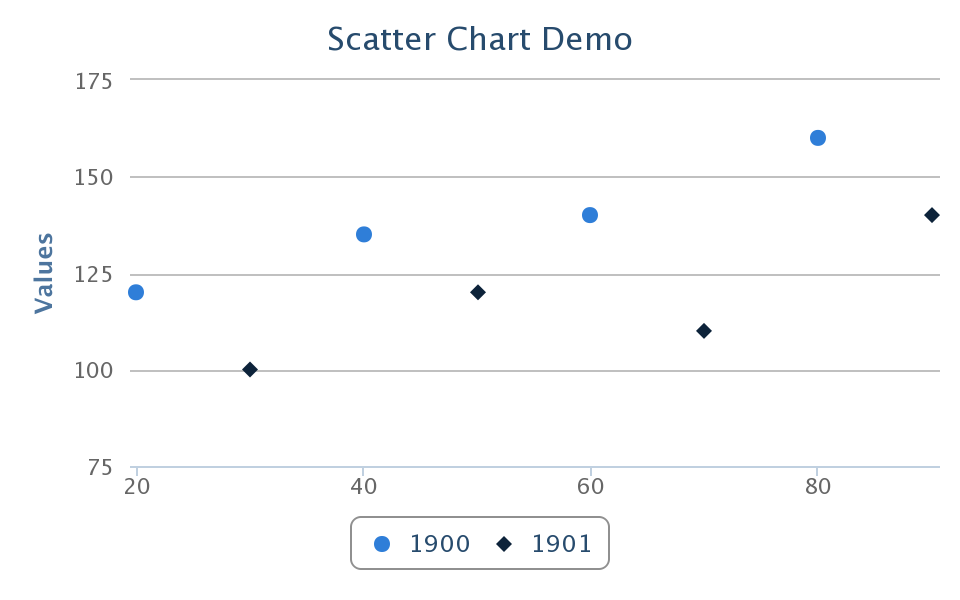

Scatter Chart

<div apply="demo.ScatterChartComposer">
    <charts id="chart" type="scatter" width="480"
        height="300" title="Scatter Chart Demo"/>
</div>

public class ScatterChartComposer extends SelectorComposer<Div> {
    @Wire
    Charts chart;

    public void doAfterCompose(Div comp) throws Exception {
        super.doAfterCompose(comp);

        XYModel model = new DefaultXYModel();
        model.addValue("1900", 20, 120);
        model.addValue("1900", 40, 135);
        model.addValue("1900", 60, 140);
        model.addValue("1900", 80, 160);
        model.addValue("1901", 30, 100);
        model.addValue("1901", 50, 120);
        model.addValue("1901", 70, 110);
        model.addValue("1901", 90, 140);

        chart.setModel(model);
    }
}

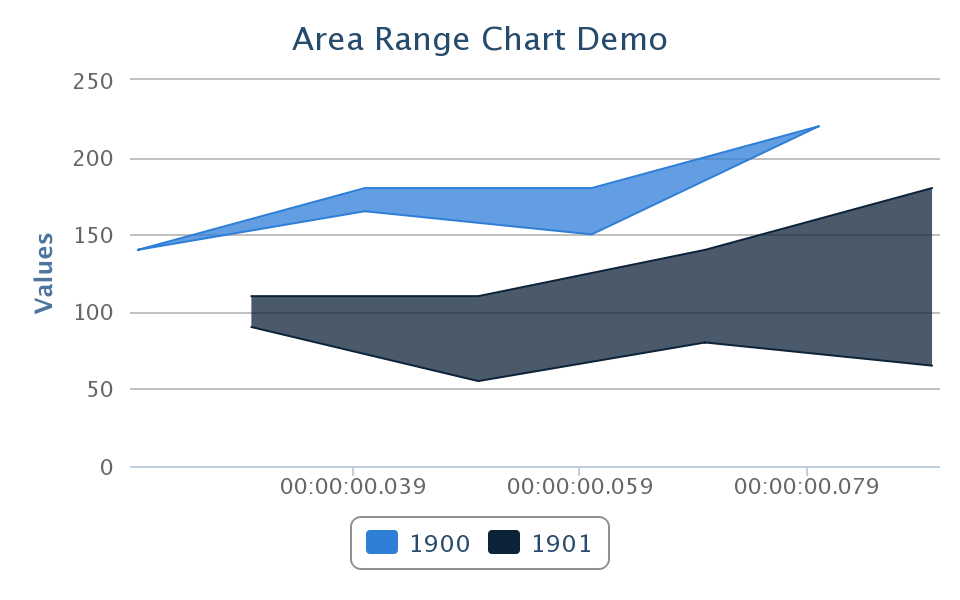

Area Range Chart

<div apply="demo.AreaRangeChartComposer">
    <charts id="chart" type="arearange" width="480"
        height="300" title="Area Range Chart Demo"/>
</div>

public class AreaRangeChartComposer extends SelectorComposer<Div> {
    @Wire
    Charts chart;

    public void doAfterCompose(Div comp) throws Exception {
        super.doAfterCompose(comp);

        XYZModel model = new DefaultXYZModel();
        model.addValue("1900", 20, 140, 140);
        model.addValue("1900", 40, 180, 165);
        model.addValue("1900", 60, 180, 150);
        model.addValue("1900", 80, 220, 220);
        model.addValue("1901", 30, 110, 90);
        model.addValue("1901", 50, 110, 55);
        model.addValue("1901", 70, 140, 80);
        model.addValue("1901", 90, 180, 65);

        chart.setModel(model);
    }
}

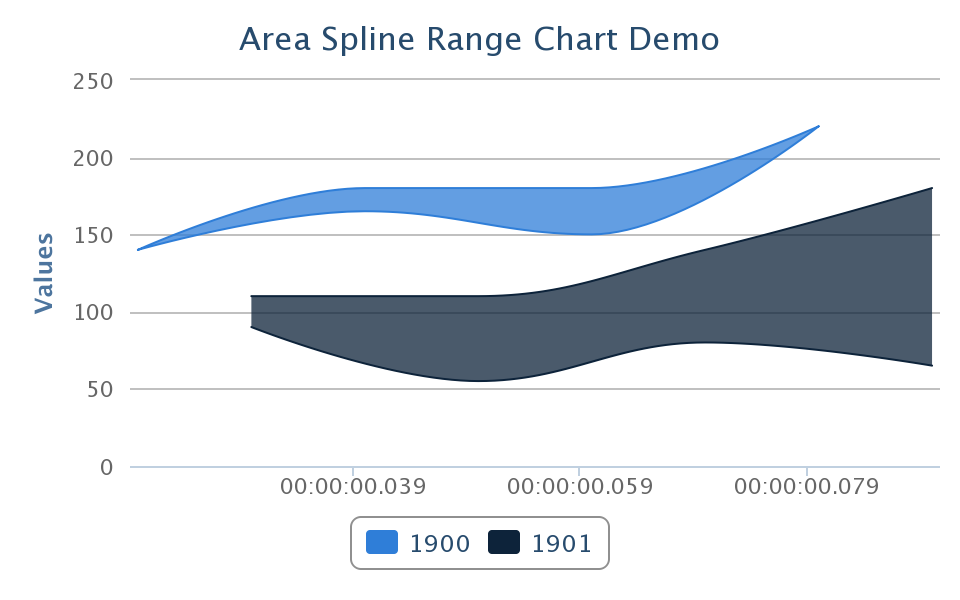

Area Spline Range Chart

<div apply="demo.AreaSplineRangeChartComposer">
    <charts id="chart" type="areasplinerange" width="480"
        height="300" title="Area Spline Range Chart Demo"/>
</div>

public class AreaSplineRangeChartComposer extends SelectorComposer<Div> {
    @Wire
    Charts chart;

    public void doAfterCompose(Div comp) throws Exception {
        super.doAfterCompose(comp);

        XYZModel model = new DefaultXYZModel();
        model.addValue("1900", 20, 140, 140);
        model.addValue("1900", 40, 180, 165);
        model.addValue("1900", 60, 180, 150);
        model.addValue("1900", 80, 220, 220);
        model.addValue("1901", 30, 110, 90);
        model.addValue("1901", 50, 110, 55);
        model.addValue("1901", 70, 140, 80);
        model.addValue("1901", 90, 180, 65);

        chart.setModel(model);
    }
}

Bubble Chart

<div apply="demo.BubbleChartComposer">
    <charts id="chart" type="bubble" width="480"
        height="300" title="Bubble Chart Demo"/>
</div>

public class BubbleChartComposer extends SelectorComposer<Div> {
    @Wire
    Charts chart;

    public void doAfterCompose(Div comp) throws Exception {
        super.doAfterCompose(comp);

        XYZModel model = new DefaultXYZModel();
        model.addValue("1900", 20, 120, 20);
        model.addValue("1900", 40, 135, 5);
        model.addValue("1900", 60, 140, 15);
        model.addValue("1900", 80, 160, 10);
        model.addValue("1901", 30, 120, 20);
        model.addValue("1901", 50, 135, 5);
        model.addValue("1901", 70, 140, 15);
        model.addValue("1901", 90, 160, 10);

        chart.setModel(model);
    }
}

Waterfall Chart

<div apply="demo.WaterfallChartComposer">
    <charts id="chart" type="waterfall" width="480"
        height="300" title="Waterfall Chart Demo"/>
</div>

public class WaterfallChartComposer extends SelectorComposer<Div> {
    @Wire
    Charts chart;

    public void doAfterCompose(Div comp) throws Exception {
        super.doAfterCompose(comp);

        CategoryModel model = new DefaultCategoryModel();
        model.setValue("1900", "Q1", 20);
        model.setValue("1900", "Q2", 55);
        model.setValue("1900", "Q3", 40);
        model.setValue("1900", "Q4", 75);

        chart.setModel(model);
    }
}

Dial Chart

<div apply="demo.DialChartComposer">
    <charts id="chart" type="gauge" width="480"
        height="300" title="Dial Chart Demo"/>
</div>

public class DialChartComposer extends SelectorComposer<Div> {
    @Wire
    Charts chart;

    public void doAfterCompose(Div comp) throws Exception {
        super.doAfterCompose(comp);

        DialModel model = new DefaultDialModel();
        DialModelScale scale = model.newScale(-10.0, 60.0, 220, -280, 10.0, 4);
        // scale's configuration data
        scale.setValue(46);
        scale.setText("Celsius");
        scale.newRange(-10, 0, "#B4C6D4", 0.9, 1);
        scale.newRange(40, 50, "#EDC435", 0.9, 1);
        scale.newRange(50, 60, "#E4CBCA", 0.9, 1);
        scale.setTickColor("#6D635D");

        model.setFrameFgColor("#624712");
        model.setFrameBgColor("#FFFFCC");

        model.setFrameBgColor1("#EEEEEE");
        model.setFrameBgColor2("#EEEEEE");

        chart.setModel(model);
    }
}

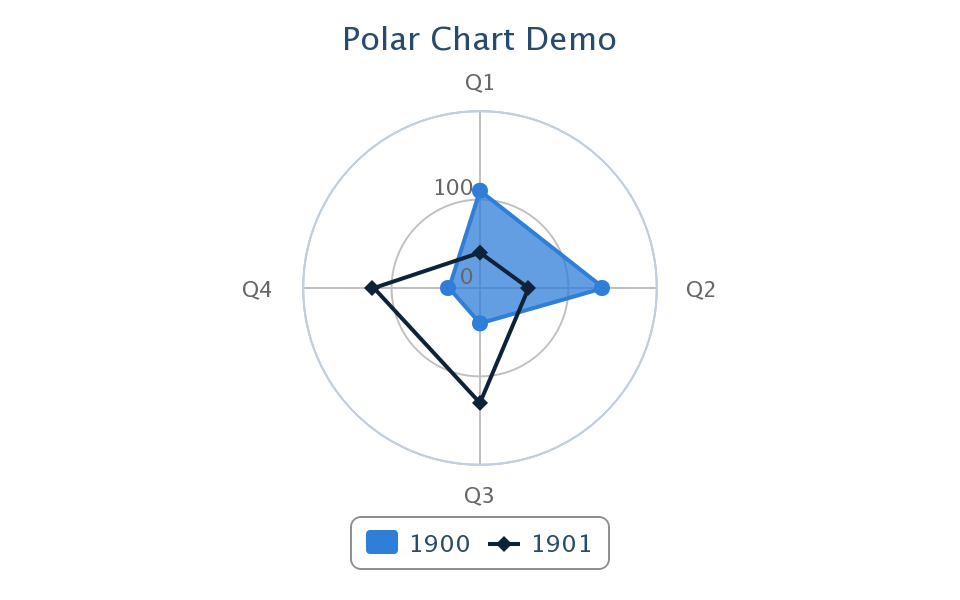

Polar Chart

<div apply="demo.PolarChartComposer">
    <charts id="chart" width="480" height="300"
        title="Polar Chart Demo" polar="true"/>
</div>

public class PolarChartComposer extends SelectorComposer<Div> {
    @Wire
    Charts chart;

    public void doAfterCompose(Div comp) throws Exception {
        super.doAfterCompose(comp);

        CategoryModel model = new DefaultCategoryModel();
        model.setValue("1900", "Q1", 110);
        model.setValue("1900", "Q2", 140);
        model.setValue("1900", "Q3", 40);
        model.setValue("1900", "Q4", 35);
        model.setValue("1901", "Q1", 40);
        model.setValue("1901", "Q2", 55);
        model.setValue("1901", "Q3", 130);
        model.setValue("1901", "Q4", 120);

        chart.setModel(model);

        chart.getXAxis().setTickmarkPlacement("on");
        chart.getPlotOptions().getSeries().setPointPlacement("on");
        chart.getSeries(0).setType("area");
    }
}
