In this section, we will show how to create your first ZK Charts component step by step.

A Very Basic Chart

First, declare a chart component in a ZUML document. Specify type and title properties.

chart.zul

<charts id="chart" type="line" title="Season Average Temperature"
    apply="org.zkoss.zkcharts.essentials.FirstChartComposer"/>

Use model to handle chart data, and set model to chart in a Controller which extends org.zkoss.zk.ui.select.SelectorComposer

First ChartComposer.java

public class FirstChartComposer extends SelectorComposer<Component> {
    @Wire
    Charts chart;

    public void doAfterCompose(Component comp) throws Exception {
        super.doAfterCompose(comp);
        // Create a predefined implementation category model
        CategoryModel model = new DefaultCategoryModel();

        // Set value to the model
        model.setValue("Tokyo", "Spring", 11);
        model.setValue("Tokyo", "Summer", 20);
        model.setValue("Tokyo", "Fall", 16);
        model.setValue("Tokyo", "Winter", -2);
        model.setValue("New York", "Spring", 6);
        model.setValue("New York", "Summer", 12);
        model.setValue("New York", "Fall", 10);
        model.setValue("New York", "Winter", 2);

        // Set model to the chart
        chart.setModel(model);
    }
}

After that, you can easily obtain an amazing chart to visualize your data.

Change Configuration

Moreover, if you want to change the configuration, you can add additional declarations in the composer:

    // Get the legend option in chart
    Legend legend = chart.getLegend();

    // Change legend's layout to vertical
    legend.setLayout("vertical");

    // Change legend's alignment
    legend.setAlign("right");
    legend.setVerticalAlign("middle");

    // Remove legend's border
    legend.setBorderWidth(0);

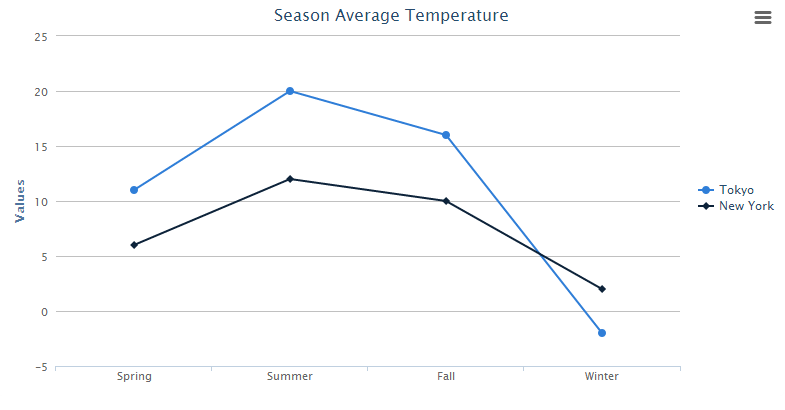

The org.zkoss.chart.Legend of chart will be moved to the right of the chart without border.
