Displaying Calendar Items

Component in MVC Pattern

In the component perspective, Calendars is designed in MVC pattern:

• Calendars (Controller): call ContentRenderer to render a calendar to the client-side, dispatch UI events to the corresponding event listeners, receives events from CalendarModel then render a calendar upon changed CalendarItem
• CalendarModel (Model): stores CalendarItem
• ContentRenderer (View): renders a calender-related data to the client-side upon CalendarModel

Based on the above architecture, if you want to show some items on a Calendar, you need to create some CalendarItem objects, put them into a CalendarModel, and assign the model to Calendars. The default implementation, DefaultCalendarItem and SimpleCalendarModel, are sufficient for most requirements.

Create a CalendarItem

Starting from version 3.0.0, we have renamed the CalendarEvent class to CalendarItem. This change was made to reduce potential confusion between events on the calendar and events fired by the ZK framework.”

You can simply create a CalendarItem with the default builder:

 DefaultCalendarItem calendarItem = new DefaultCalendarItem.Builder()
                .withTitle("my title")
                .withContent("my content")
                .withBegin(LocalDateTime.now().truncatedTo(ChronoUnit.HOURS))
                .withEnd(LocalDateTime.now().truncatedTo(ChronoUnit.HOURS).plusHours(2))
                .withZoneId(calendars.getDefaultTimeZone().toZoneId())
                .build();

If you don’t specify the title, it displays [begin time - end time] at an item’s header:

If an item is shorter than half an hour, it appends the content in the header:

Create a CalendarModel

You can instantiate a SimpleCalendarModel with a collection of DefaultCalendarItem or add a DefaultCalendarItem after instantiation.

private SimpleCalendarModel model;
...
    model = new SimpleCalendarModel(CalendarItemGenerator.generateList());
    DefaultCalendarItem calendarItem = new DefaultCalendarItem("my title",
                "my content",
                null,
                null,
                false,
                LocalDateTime.now().truncatedTo(ChronoUnit.HOURS),
                LocalDateTime.now().truncatedTo(ChronoUnit.HOURS).plusHours(2)
    model.add(calendarItem);

Assign the Model to Calendars

After creating a SimpleCalendarModel, we need to associate a component with the model, so that Calendar will render items to a browser.

public class DisplayComposer extends SelectorComposer {

    @Wire("calendars")
    private Calendars calendars;
    private SimpleCalendarModel model;

    @Override
    public void doAfterCompose(Component comp) throws Exception {
        super.doAfterCompose(comp);
        initModel();
        calendars.setModel(model);
    }

Display a Tooltip

To show a tooltip when an end-user hover this mouse on an calendar item, you need to:

1. create a popup
2. link the popup with your calendars with tooltip attribute.
3. implement the logic to show a tooltip in an onItemTooltip listener.

    <calendars height="100%"  beginTime="8"
     apply="org.zkoss.calendar.essentials.DisplayTooltipComposer"
     tooltip="tooltipPopup, position=after_pointer"/>
    <popup id="tooltipPopup">
        <label id="tooltipText"/>
    </popup>

Customizing Calendar Item Appearance

From calendar 3.1.0 and onward, SimpleCalendarItem supports sclass, style, contentStyle and headerStyle attributes.

the sclass attribute will add a CSS class on the top DOM node of the calendar item, which allow the whole element to be used in a css selector.

    calendarItem.setSclass("myClass");

    .myClass{ //selector for the whole node
        //my-css-property: myValue;
    }
    .myClass .z-calitem-body{ //selector for a sub-node
        //my-css-property: myValue;
    }

This is a good way to assign styles to categories of items.

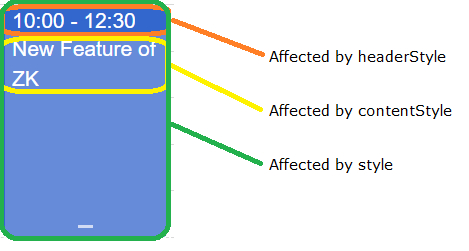

If you need to assign styles to individual items, you can use the style, contentStyle and headerStyle properties instead:

    calendarItem.setStyle("background-color: #0093f9"); //affects the whole item
    calendarItem.setHeaderStyle("background-color: red; color: white;"); //affects the header node, may override setStyle for this node
    calendarItem.setContentStyle("background-color: rgb(255, 255, 0); color: white;"); //affects the content node, may override setStyle for this node

before 3.1.0

Before calendar 3.1.0, only the background color can be customized for the calendar item’s main Node with the contentColor attribute, and the header’s node with the headerColor attribute. These are deprecated after 3.1.0, and should be replaced by style attributes.
